Polo Mk5

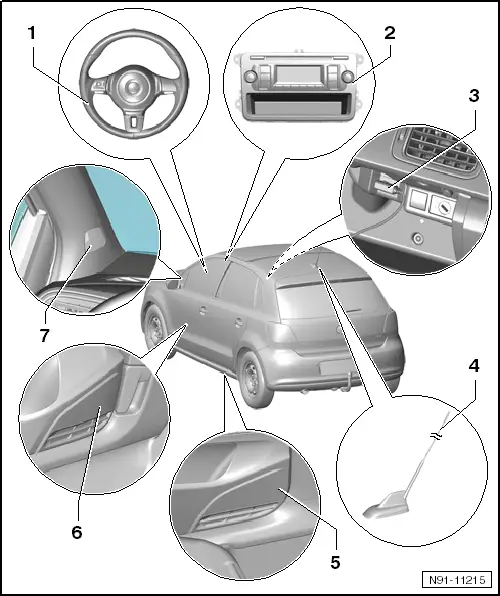

| Overview of radio system „RCD 210“ |
| 1 - | Multifunction buttons on left in steering wheel -E440- |
| q | For further information, refer to chapter Multifunction steering wheel → Chapter. |
| 2 - | Radio -R- |
| q | RCD 210 |
| q | Removing and installing → Chapter. |
| q | Overview of connectors → Chapter |
| q | Anti-theft coding → Chapter |
| 3 - | Multimedia system control unit -J650- |
| q | Installed in glove compartment |
| q | For further information, refer to chapter Multimedia control unit → Chapter. |
| 4 - | Aerial -R11- |
| q | Installed on rear of roof |
| q | Designed either as a single short rod aerial or as a »shark fin«. |
| q | The short rod aerial is always fitted when no optional equipment such as a „telephone system“ is installed. |
| q | The »shark fin« aerial is always fitted when an optional equipment such as a „telephone system“ is installed in addition to the radio unit. |
| q | The aerial version is technically adapted to the vehicle's equipment. |
| q | For further information, refer to chapter Aerial systems → Chapter. |
| 5 - | Rear right bass loudspeaker -R17- and rear left bass loudspeaker -R15- |
| q | Installed in rear left and right side trim panels of 2-door vehicle |
| q | Installed in rear left and right door trims of 4-door vehicle |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 6 - | Front right bass loudspeaker -R23- and front left bass loudspeaker -R21- |
| q | Installed in left and right doors |
| q | Mid-range sounds are handled by the bass and treble loudspeakers. |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 7 - | Front right treble loudspeaker -R22- and front left treble loudspeaker -R20- |
| q | Installed in left and right A-pillar trims |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
