R32 4Motion V6-3.2L (CBRA) (2008)
Grille: Service and Repair

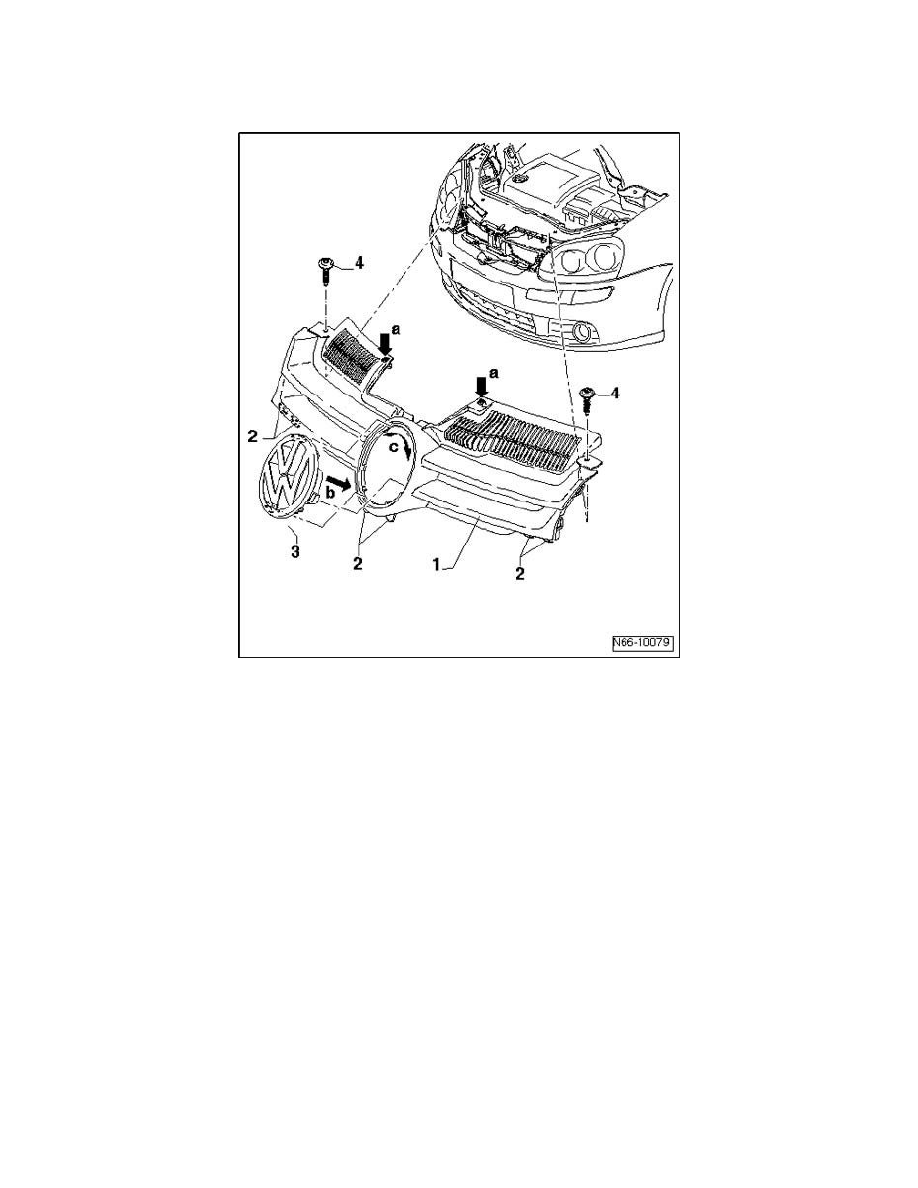

Radiator Grille Assembly Overview
Radiator Grille Assembly Overview
1
-
Radiator Grille
-
Material - ASA
2
-
Catches
-
Qty. 6
3
-
Emblem
-
Clipped into radiator grille.
-
Can be removed only when radiator grille is removed
-
Removing: Release catches on rear side of emblem with radiator grille removed.
-
Installing: Guide manufacturers emblem with catch into recesses in radiator grille - arrow b - , then twist slightly in direction - arrow c -
until manufacturers emblem engages in radiator grille.
4
-
Bolt
-
Qty. 2
-
2 Nm
