R32 4Motion V6-3.2L (CBRA) (2008)
-

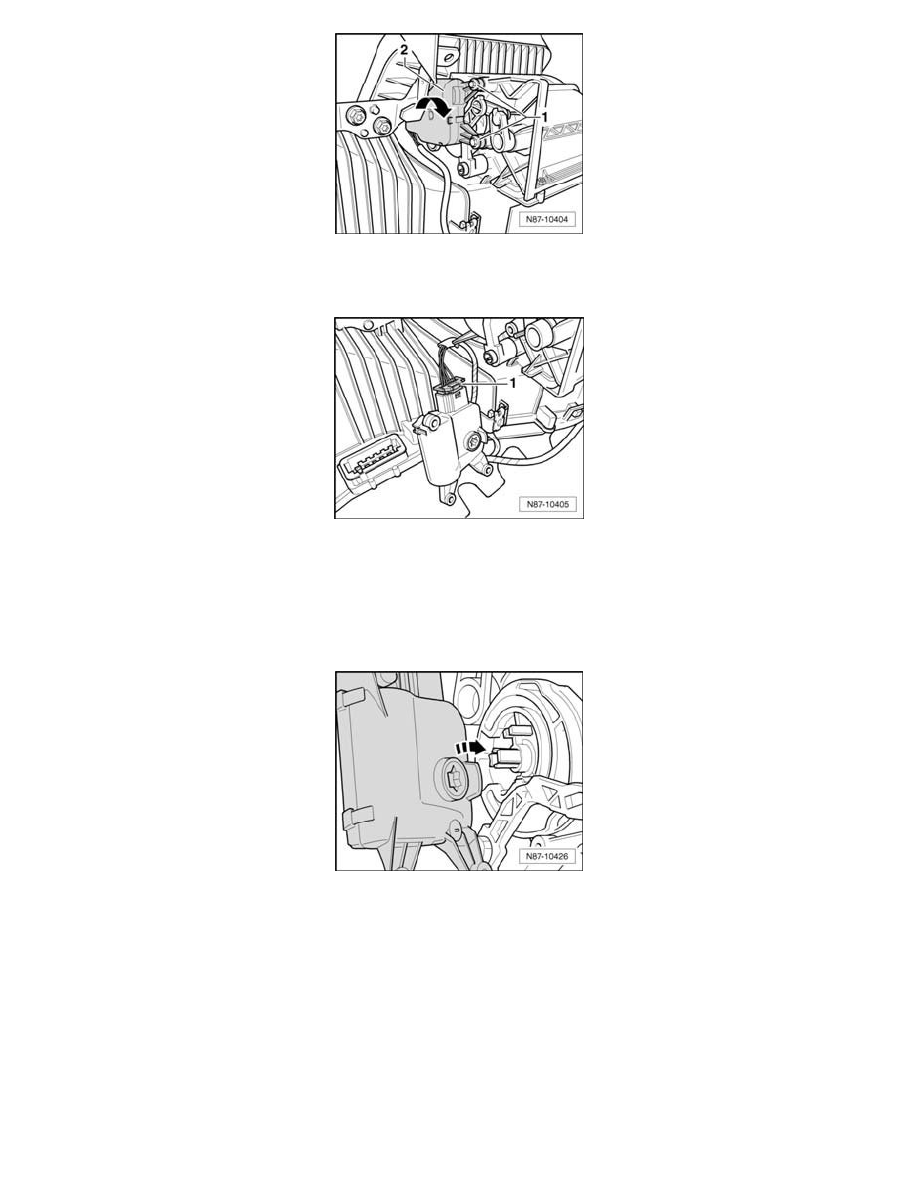

Remove the bolts - 1 - (1.4 Nm).
-
Turn the Fresh Air/Recirculating Air/Back Pressure Door Motor V425 - 2 - approximately 15 degrees in - direction of arrow - and then pull it off
the air intake housing.
-
Disconnect the connector - 1 - from the Fresh Air/Recirculating Air/Back Pressure Door Motor V425.
NOTE: Position of air flow door must not be changed.
Installing
Installation is performed in the reverse order; when doing this note the following:
The Fresh Air/Recirculating Air/Back Pressure Door Motor V425 fits in only one position on the curved washer.
NOTE:
-
After installing, check the function of the back pressure and recirculation door.
-
Initiate "Basic Setting" function with Vehicle Diagnosis, Testing and Information System VAS 5051 (or succeeding model)
Fresh Air/Recirculating Air/Back Pressure Door Adjuster
Fresh Air/Recirculating Air/Back Pressure Door Adjuster
Removing
-
Remove the Fresh Air/Recirculating Air/Back Pressure Door Motor V425
