R32 4Motion V6-3.2L (CBRA) (2008)
9
-
Right Footwell Vent Temperature Sensor G262
10
-
Fresh Air Intake Duct Temperature Sensor G89 only installed through December 2005
11
-
Evaporator Temperature Sensor G308 or Evaporator Vent Temperature Sensor G263
14
-
Signal Ground (GND) potentiometer
16
-

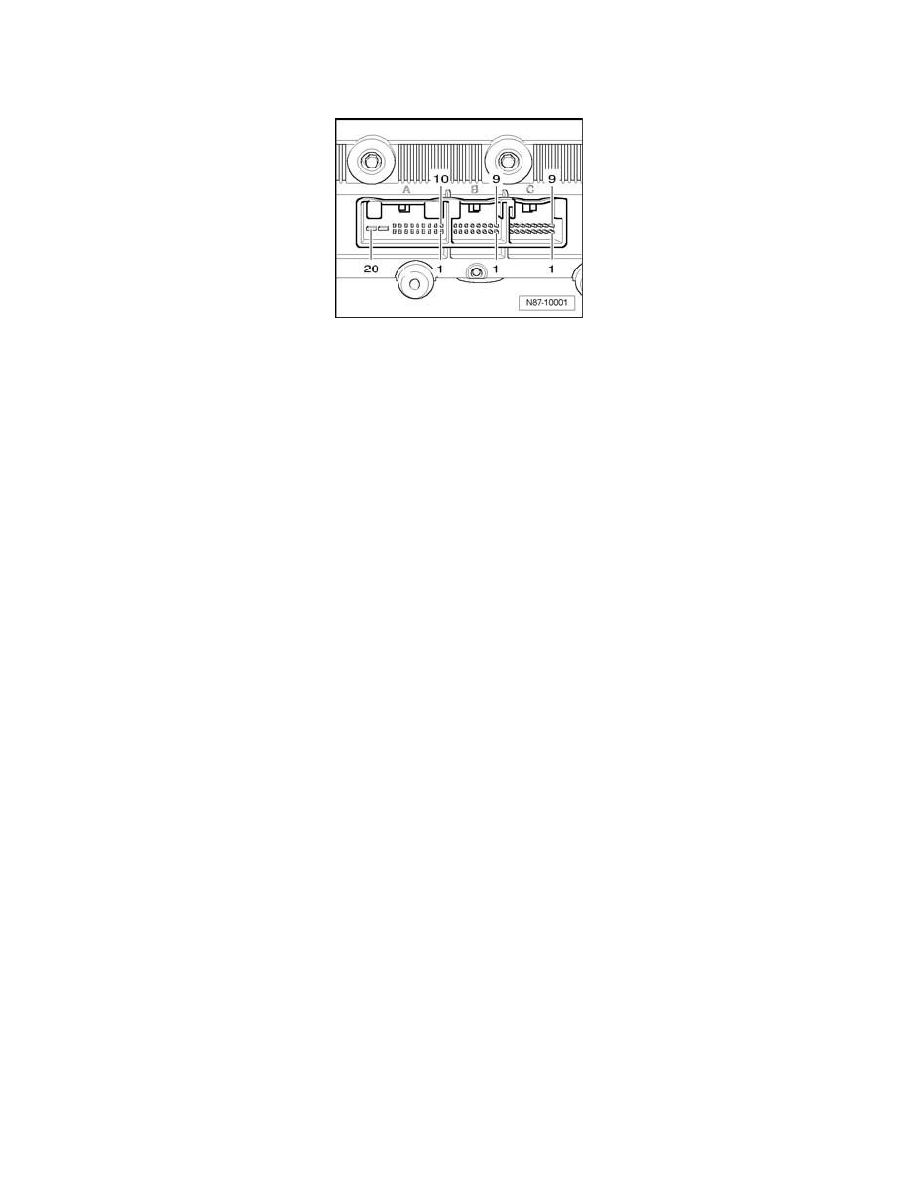

pin harness connector, in wiring diagram T16d - C -
1
-
Left Temperature Door Motor V158, cold
2
-
Left Temperature Door Motor V158, warm
3
-
Defroster Door Motor V107, closed
4
-
Defroster Door Motor V107, open
5
-
Central Air Door Motor V70, upper body outlet
6
-
Central Air Door Motor V70, footwell
7
-
Vehicles through 04.07 recirculation door motor V113, recirculation activation. From 05.07, recirculation door motor V113 discontinued
8
-
Vehicles through 04.07 recirculation door motor V113, fresh air activation. From 05.07, recirculation door motor V113 discontinued
9
-
Through 04.07 air flow door motor V71, open. From 05.07 fresh air/recirculating air/back pressure door motor V425 (recirculation/partial
recirculation)
10
-
Through 04.07 air flow door motor V71, closed. From 05.07 fresh air/recirculating air/back pressure door motor V425 recirculation/back
pressure)
11
-
Right Temperature Door Motor V159, cold
12
-
Right Temperature Door Motor V159, warm
15
-
Fresh Air Blower V2 (PWM activation)
16
-
Fresh Air Blower V2, return message signal
