R32 4Motion V6-3.2L (CBRA) (2008)
Instrument Panel, Gauges and Warning Indicators
Dashboard / Instrument Panel / Component Information
Service and Repair / Footwell Cover, Driver Side
Page 7338
Page 5
-

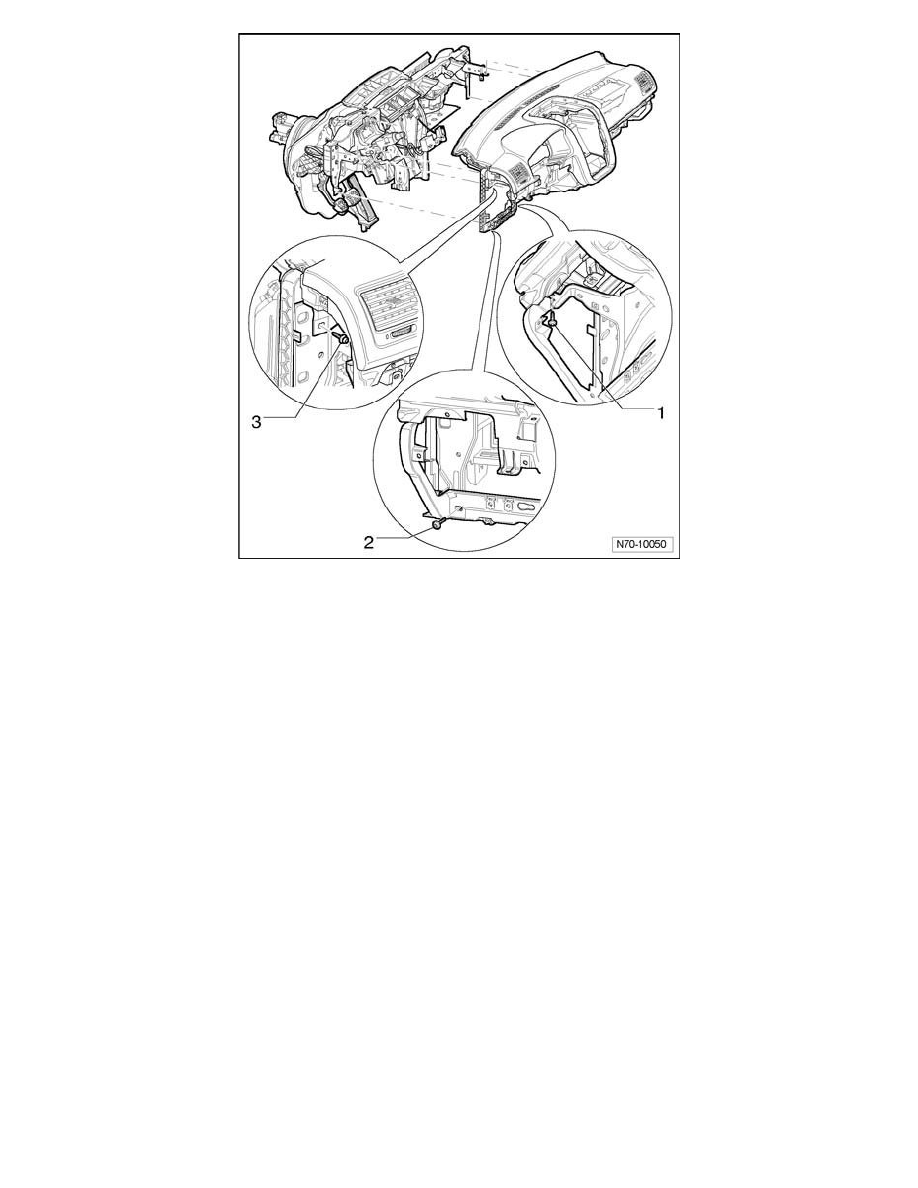

Remove bolts - 1 - , - 2 - and - 3 - (3 Nm).
Instrument Panel, Gauges and Warning Indicators
Dashboard / Instrument Panel / Component Information
Service and Repair / Footwell Cover, Driver Side
Page 7338
