R32 4Motion V6-3.2L (CBRA) (2008)
Tail Lamp: Locations

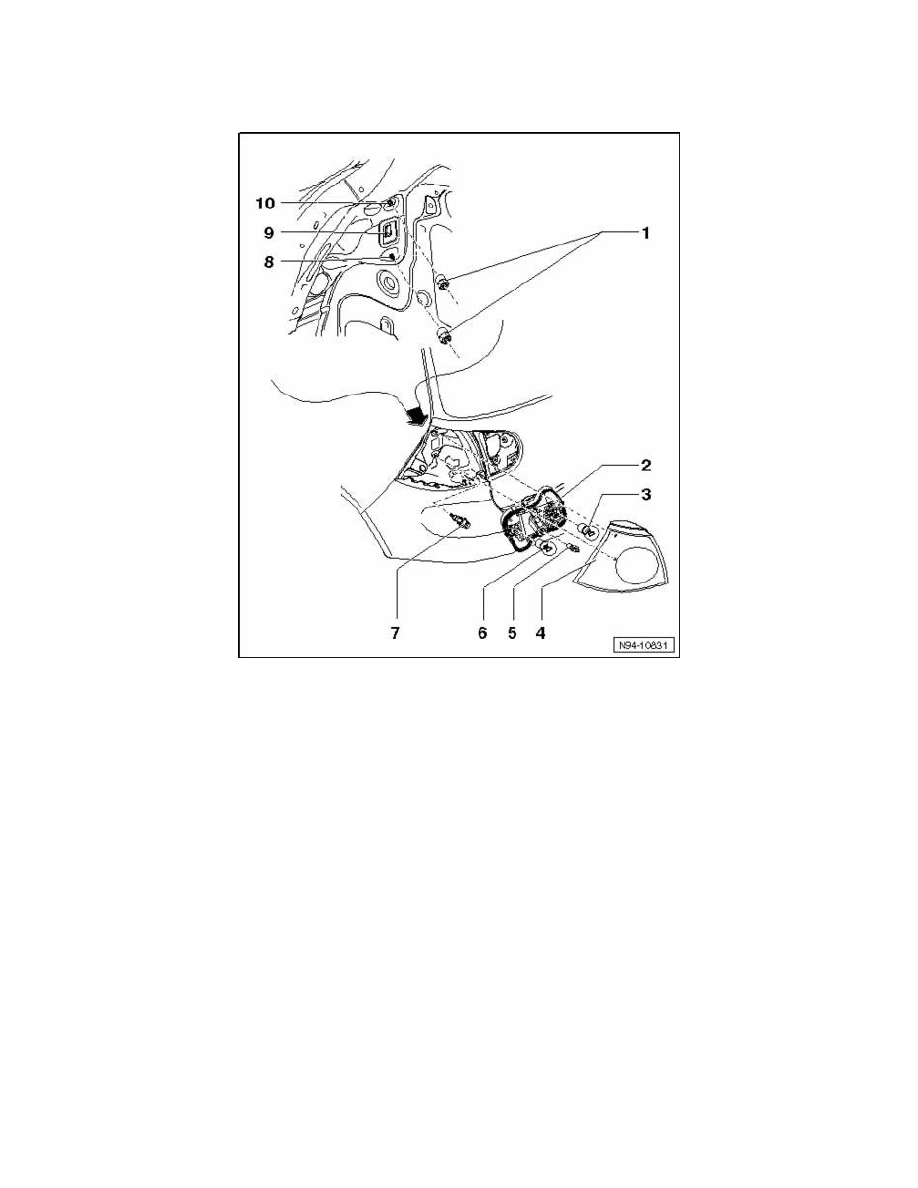

Tail Lamps In Side Panel, Assembly Overview
Tail Lamps in Side Panel, Assembly Overview
1
-
Nuts
-
Tightening specifications
2
-
Bulb holder
3
-
Left Tail lamp M4 and Right Tail lamp M2
-
12 V, P 21 W
4
-
Tail lamp assembly housing in side panel
5
-
Left Rear Turn Signal Lamp M6 and Right Rear Turn Signal Lamp M8
-
12 V, H 6 W
6
-
Left Brake Lamp M9 and Right Brake Lamp M10
-
12 V, P 21 W
7
-
Adjusting element
-
Tail lamps, adjusting
8
-
Threaded pins on tail lamp housing in lower side panel
9
-
Connector on tail lamp housing in side panel
10
-
Threaded pins on tail lamp housing in upper side panel
