R32 4Motion V6-3.2L (CBRA) (2008)
/Page-367001.png)
Final Drive Fluid: Service and Repair
Rear Differential
Rear Final Drive Oil Level, Checking and Filling
Special tools, testers and auxiliary items required
^
Torque wrench 5-50 Nm VAG 1331
Requirements
^
The final drive must be in the installation position.
-

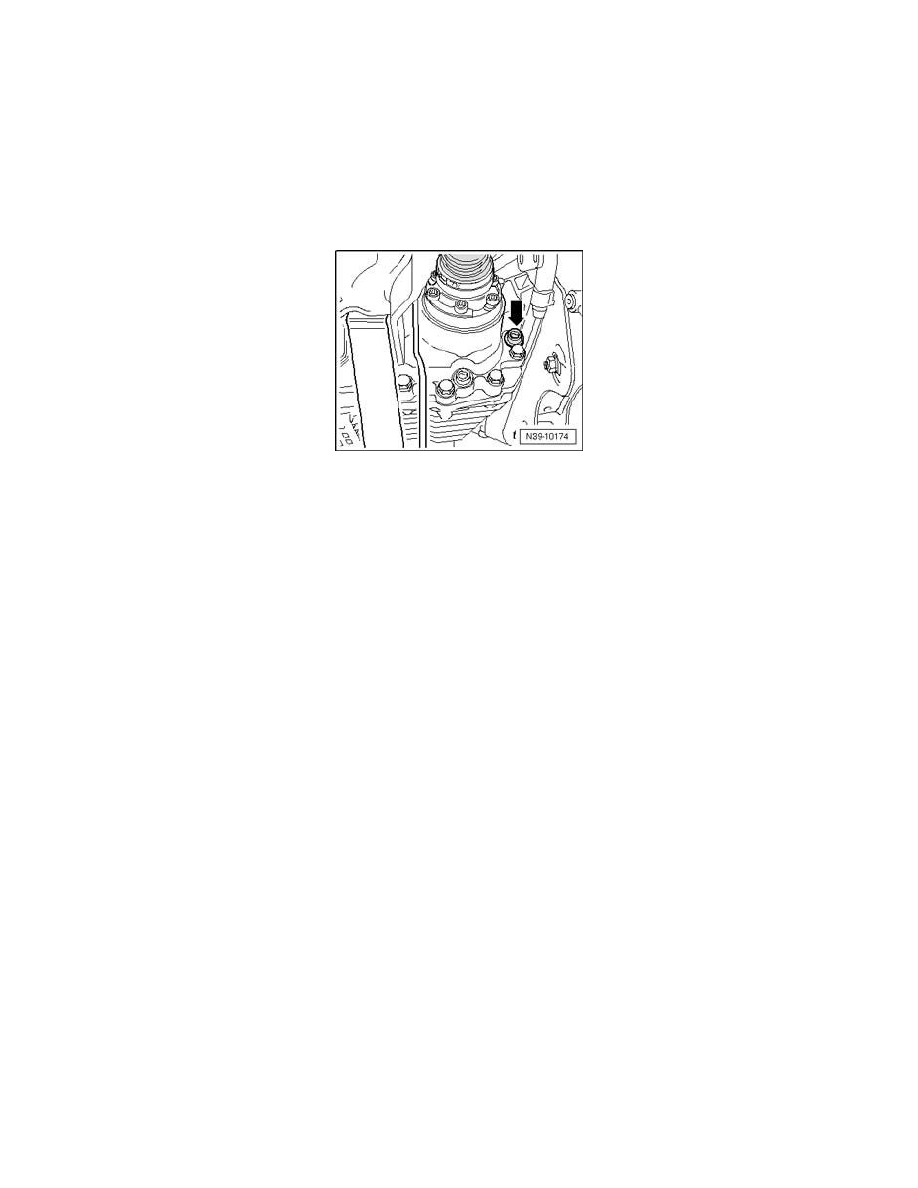

Remove the gear oil inspection plug -arrow-.
The oil level is correct when the rear final drive is filled to the lower edge of the fill hole.
-
Install bolt -arrow- and tighten to 40 Nm.
When filling, note the following:
-
Remove the bolt -arrow-.
-
Add oil until it reaches the lower edge of the fill hole.
-
Install bolt -arrow- and tighten to 40 Nm.
