R32 4Motion V6-3.2L (CBRA) (2008)
/Page-363003.png)
-

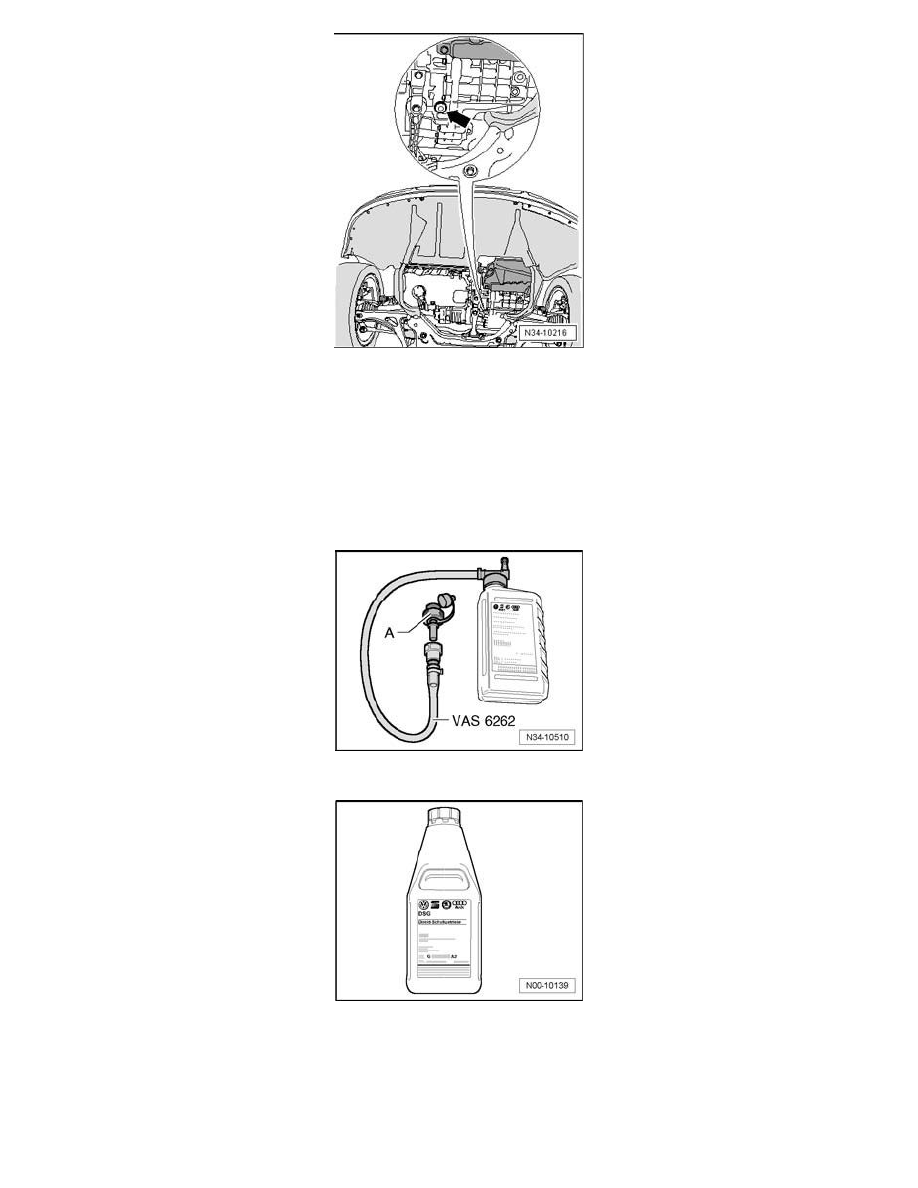

Remove inspection plug near pendulum support -arrow-.
Following that, the second bolt was discontinued and the oil is drained and the oil level is checked only with the -A- bolt.
The oil level in the transmission is determined with the length of the plastic overflow tube with 8 mm hex socket head (tightening specification 3 Nm).
-
Oil pipe, removing
Approximately 5 liters of oil will drain.
-
Reinstall the overflow tube; tightening specification: 3 Nm
-
Hand-tighten the adapter -A- from the Adapter For Oil Filling VAS 6262 in the inspection hole
-
Shake bottles before opening.
-
Add 5.5 liters of DSG transmission oil.
To ensure the transmission oil can flow from the bottle into the transmission by it self, hold the bottle upside down with the hose connected and the
shut-off valve open and high enough so it is above the transmission.
-
To change containers, close the shut-off valve or hold the adapter for oil filling VAS 6262 higher than the transmission.
