R32 4Motion V6-3.2L (CBRA) (2008)
13 - Bolt
^
M16 x 1.5 x 80
^
Hex head bolt = 200 Nm plus an additional 180° turn
^
Twelve point bolt = 70 Nm plus an additional 90° turn
^
Always replace after removal
Vehicle must not stand on wheels when loosening and tightening
14 - Bolt
15 - Wheel hub with wheel bearing (4-point mount)
^
Sensor ring for ABS is installed in wheel hub
^
Various versions
16 - Wheel bearing housing (4-point mount) - FN3 brake
^
With integrated brake carrier
^
If wheel bearing housing is replaced, vehicle alignment must be performed afterwards.
17 - Socket head bolt
^
M12 x 1.5 x 45
^
70 Nm plus an additional 90° turn
^
Always replace after removal
18 - Drive Shaft
19 - Nut
^
M12 x 1.5
^
70 Nm plus an additional 90° turn
^
Self-locking
^
Always replace after removal
Transverse Link and Tie Rod, Aluminum Subframe and Steel Wheel Bearing Housing Assembly
Overview

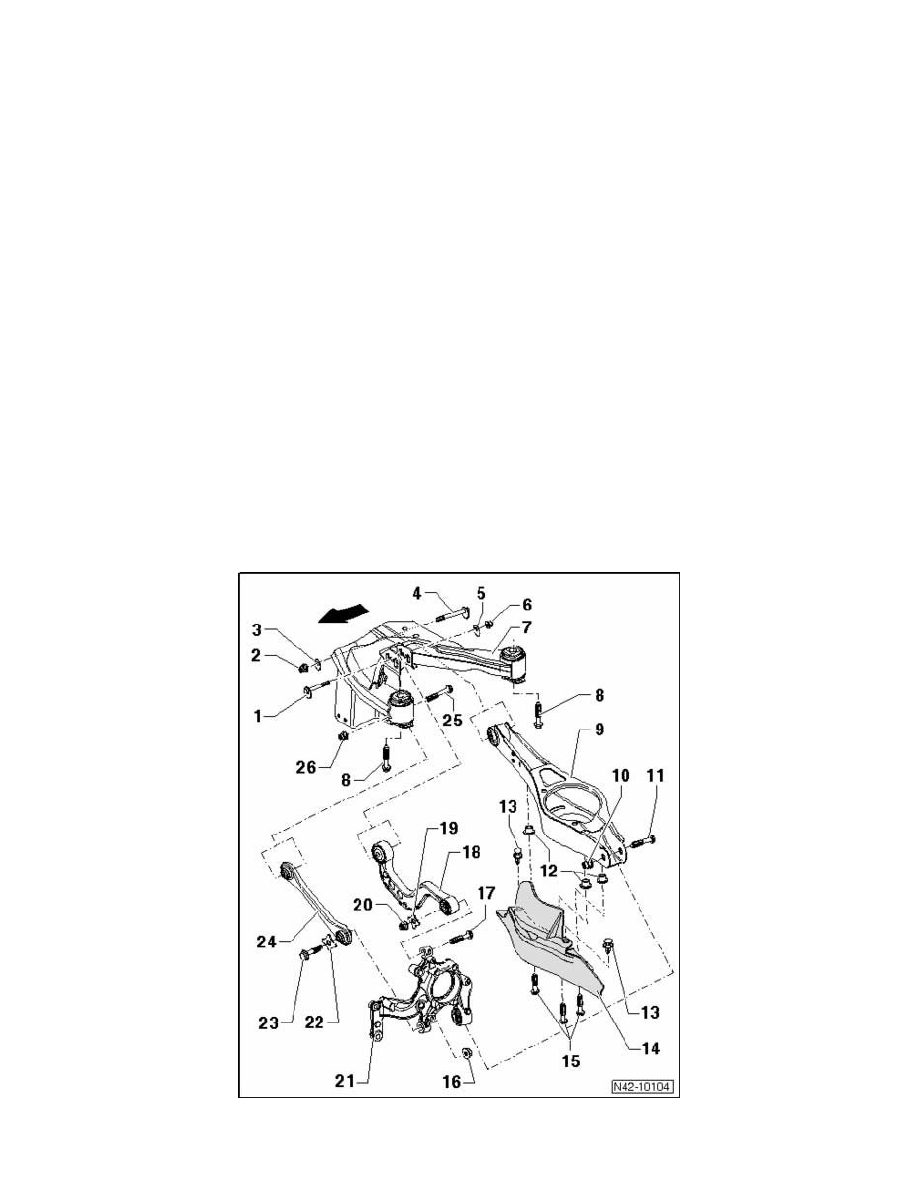

Transverse Link and Tie Rod, Aluminum Subframe and Steel Wheel Bearing Housing Assembly Overview, AWD (Rabbit)
The -arrow- points in driving direction.
1 - Eccentric bolt
^
After loosening, perform vehicle alignment
