R32 4Motion V6-3.2L (CBRA) (2008)
/Page-412005.png)
exchanged and/or additionally installed.
6 - Trailing link
^
Servicing Trailing Arm, Servicing (Rabbit, Aluminum Subframe AWD)
7 - Drive axle
8 - Bolt
^
M12 x 1.5 x 45
^
70 Nm plus an additional 90° turn
^
Always replace after removal
9 - Wheel Bearing Housing
^
A mixed installation of aluminum wheel bearing housings is permissible
^
Only aluminum wheel bearing housing are available as a replacement part; therefore when exchanging, there are certain parts which must be
exchanged and/or additionally installed.
10 - Rear ABS Wheel Speed Sensor G44/G46
11 - Bolt
^
9 Nm
12 - Bonded rubber bushing
13 - Nut
^
40 Nm
^
Self-locking
^
Always replace after removal
14 - Phillips-head screw
^
4 Nm
15 - Brake disc
16 - Bolt
^
Hex head bolt 180 Nm plus an additional 180° turn
^
Twelve point bolt 70 Nm plus an additional 90° turn
^
Always replace after removal
Note: Vehicle must not stand on wheels when loosening and tightening
17 - Wheel hub with wheel bearing
^
Sensor ring for ABS is installed in wheel hub
The wheel bearing and wheel hub are installed together in a housing.
This wheel bearing/hub unit is maintenance and adjustment free. Adjusting and servicing is not possible!
18 - Bolt
^
10 Nm
^
Only aluminum wheel bearing housing are available as a replacement part; therefore when exchanging, there are certain parts which must be
exchanged and/or additionally installed.
19 - Cover plate
^
Only aluminum wheel bearing housing are available as a replacement part; therefore when exchanging, there are certain parts which must be
exchanged and/or additionally installed.
Wheel Bearing Housing and Trailing Arm, Steel Subframe and Aluminum Wheel Bearing Housing
Assembly Overview

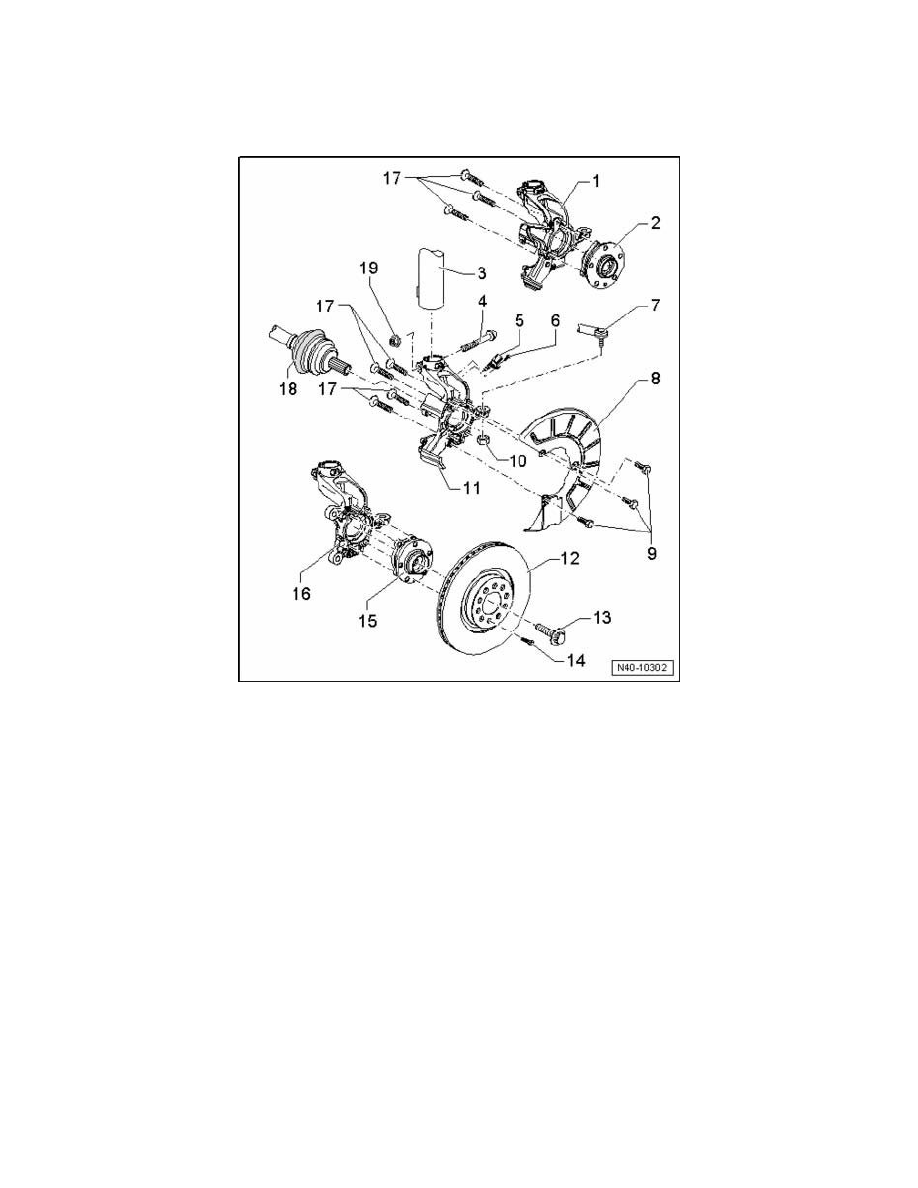

Wheel Bearing Housing and Trailing Arm, Steel Subframe and Aluminum Wheel Bearing Housing Assembly Overview, AWD (Rabbit)
The -arrow- points in driving direction.
