R32 4Motion V6-3.2L (CBRA) (2008)
Power and Ground Distribution
Fuse / Component Information
Application and ID / Fuses In Engine Compartment
Page 4154
Page 14

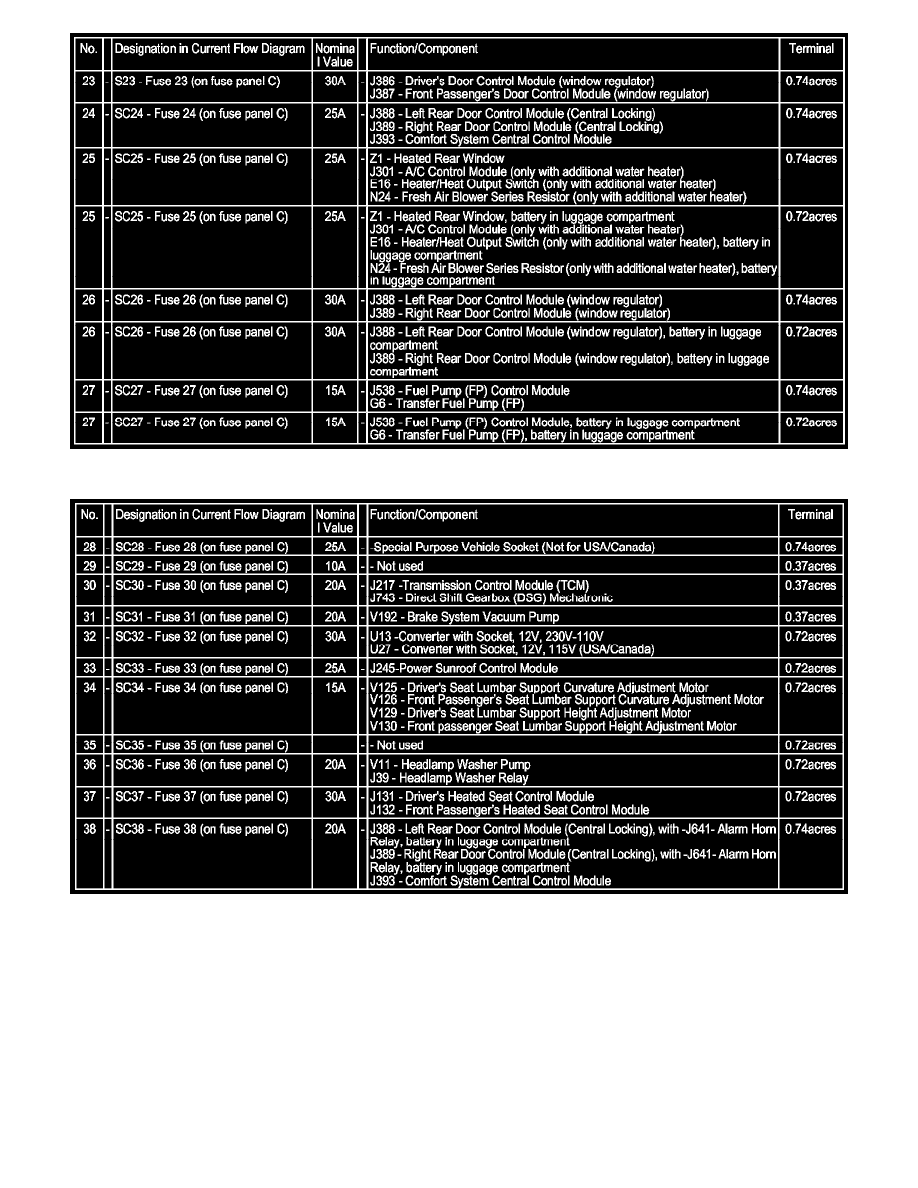

Fuse Arrangements Electronics Box High Part 4
Fuse Arrangements Electronics Box High Part 5
Power and Ground Distribution
Fuse / Component Information
Application and ID / Fuses In Engine Compartment
Page 4154
