Electronic Throttle Actuator: Service and Repair

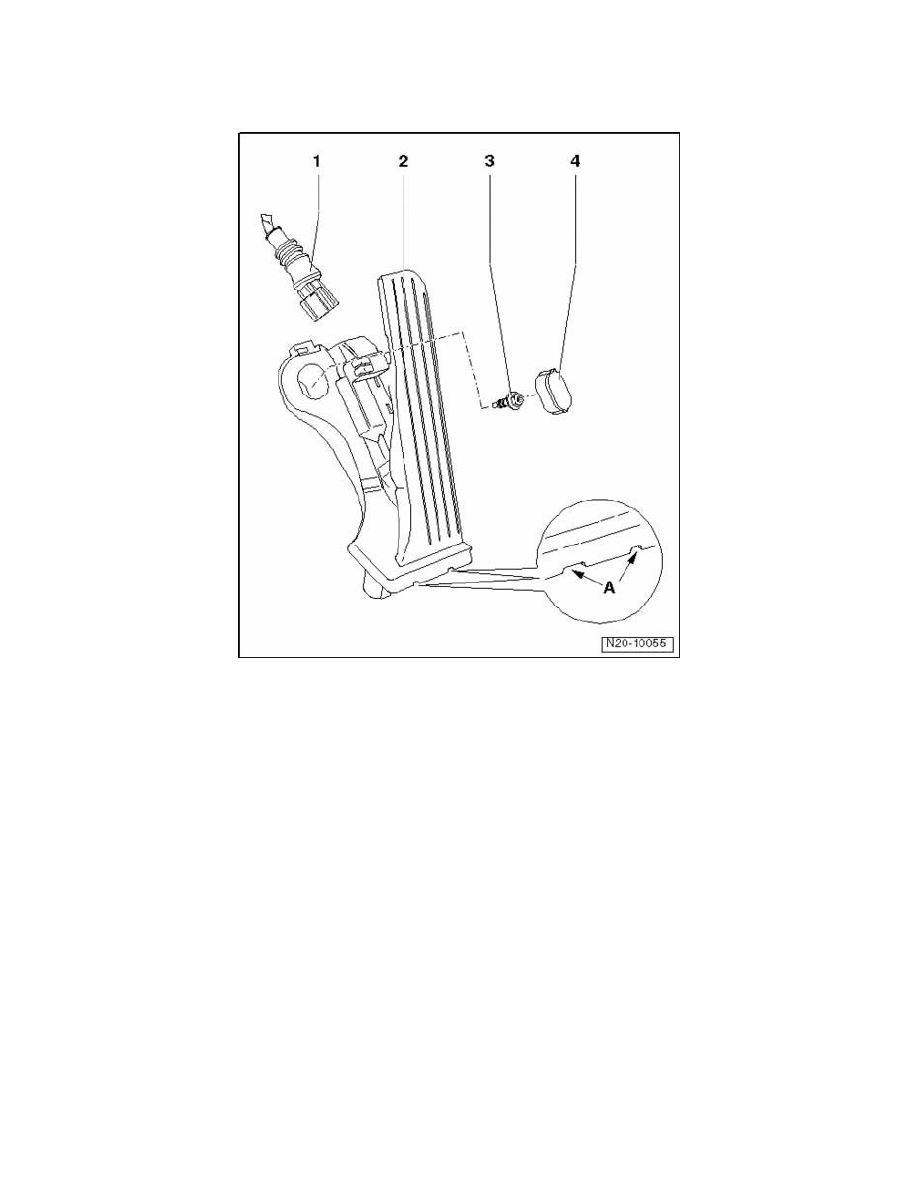

Accelerator Pedal Module Assembly Overview

Accelerator Pedal Module Assembly Overview

1

-

Connector
-

Black, 6 pin

2

-

Throttle Position (TP) sensor G79 with accelerator pedal position sensor 2 G185
-

Not adjustable

-

The throttle position sensor transmits the driver control to the engine control module

-

- A - Openings for release tool T10238

3

-

10 Nm

4

-

Cap
