R32 4Motion V6-3.2L (CBRA) (2008)
Powertrain Management
Emission Control Systems
Relays and Modules - Emission Control Systems / Air Injection Pump Relay / Component Locations, Overview
Page 2678
Page 1

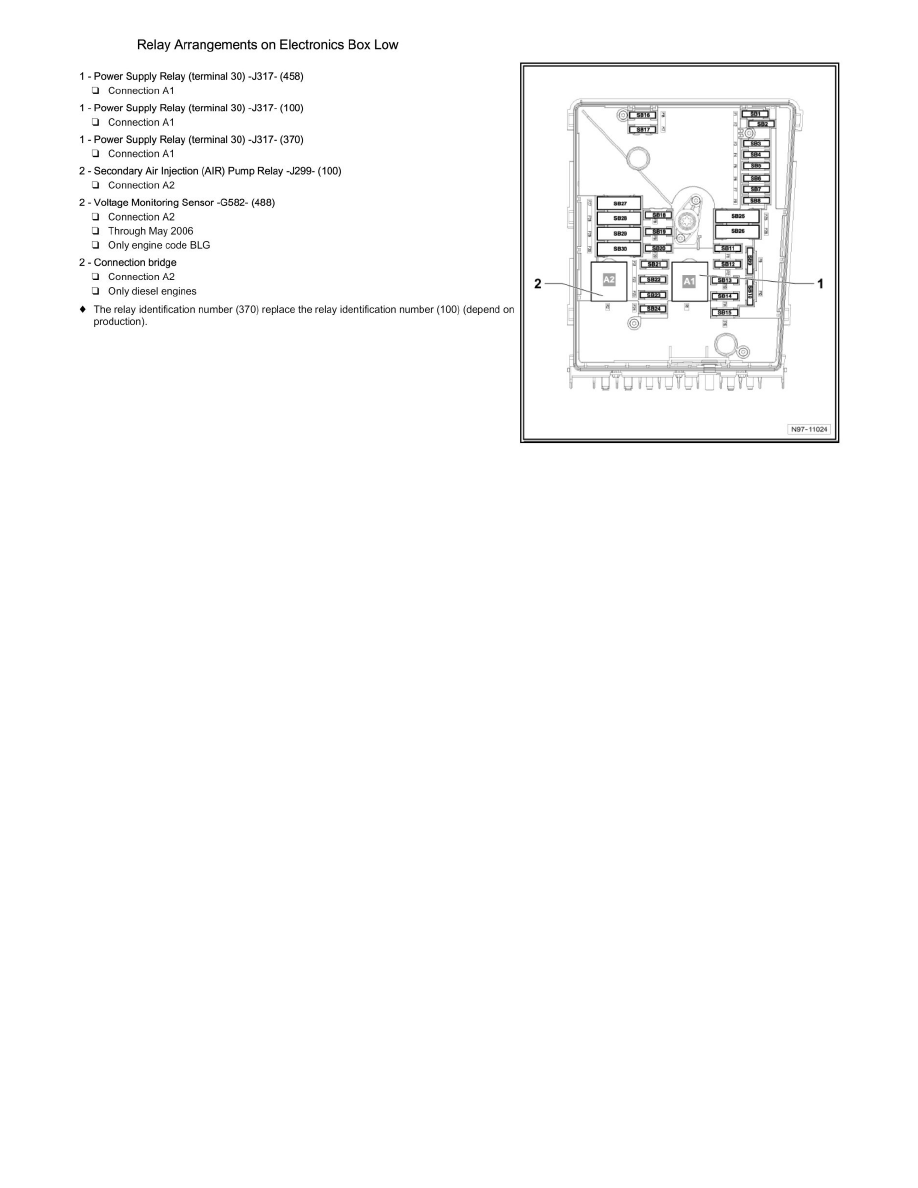

Relay Arrangements On Electronics Box Low
Powertrain Management
Emission Control Systems
Relays and Modules - Emission Control Systems / Air Injection Pump Relay / Component Locations, Overview
Page 2678
