Resonator: Service and Repair

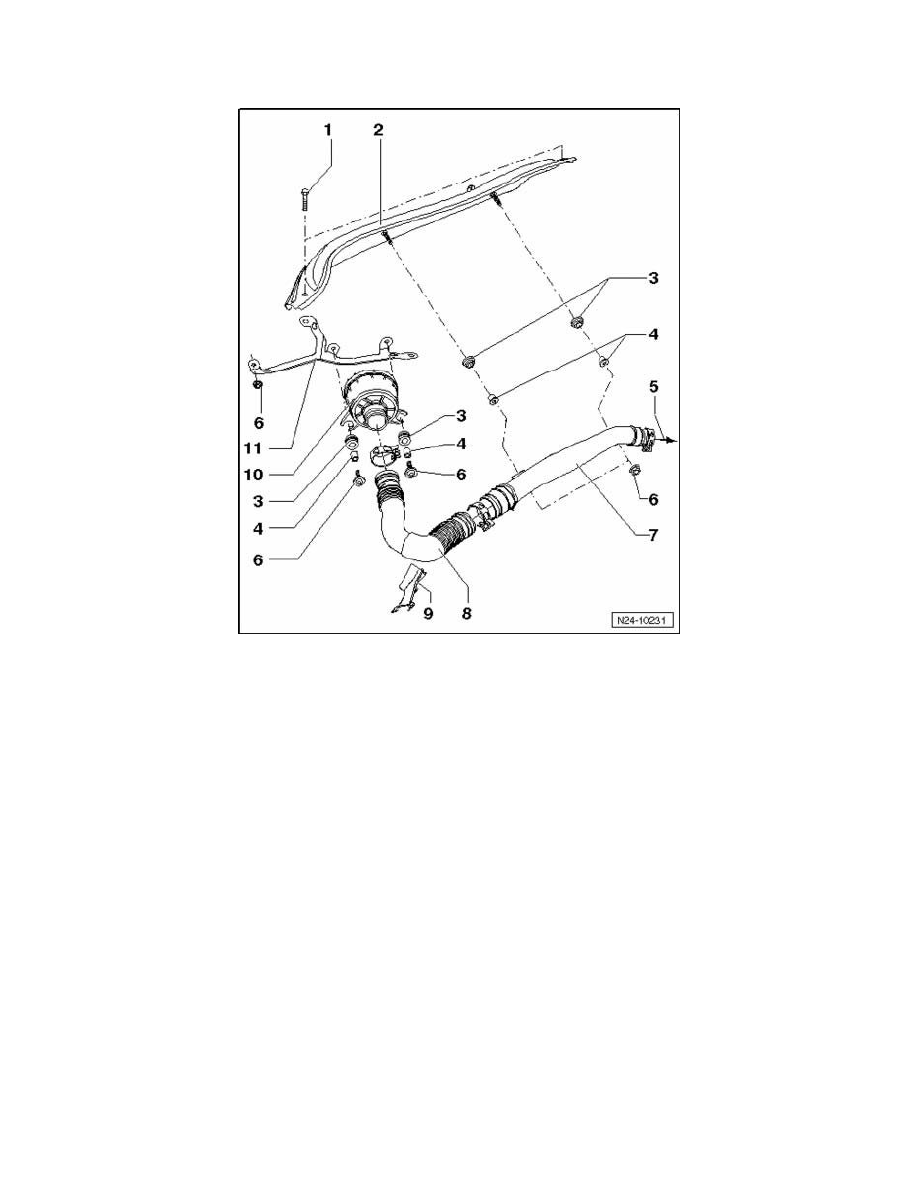

Resonator With Resonance Tube Assembly Overview

1

-

10 Nm

2

-

Plenum chamber bulkhead

3

-

Rubber bushing

4

-

Spacer sleeve

5

-

From connecting hose

6

-

10 Nm

7

-

Resonance tube

8

-

Connecting hose

9

-

Bracket
-

For feed through to plenum chamber

10

-

Resonator

11

-

Bracket
-

For resonator
