R32 4Motion V6-3.2L (CBRA) (2008)
/Page-935001.png)
Transmission Temperature Sensor/Switch: Locations

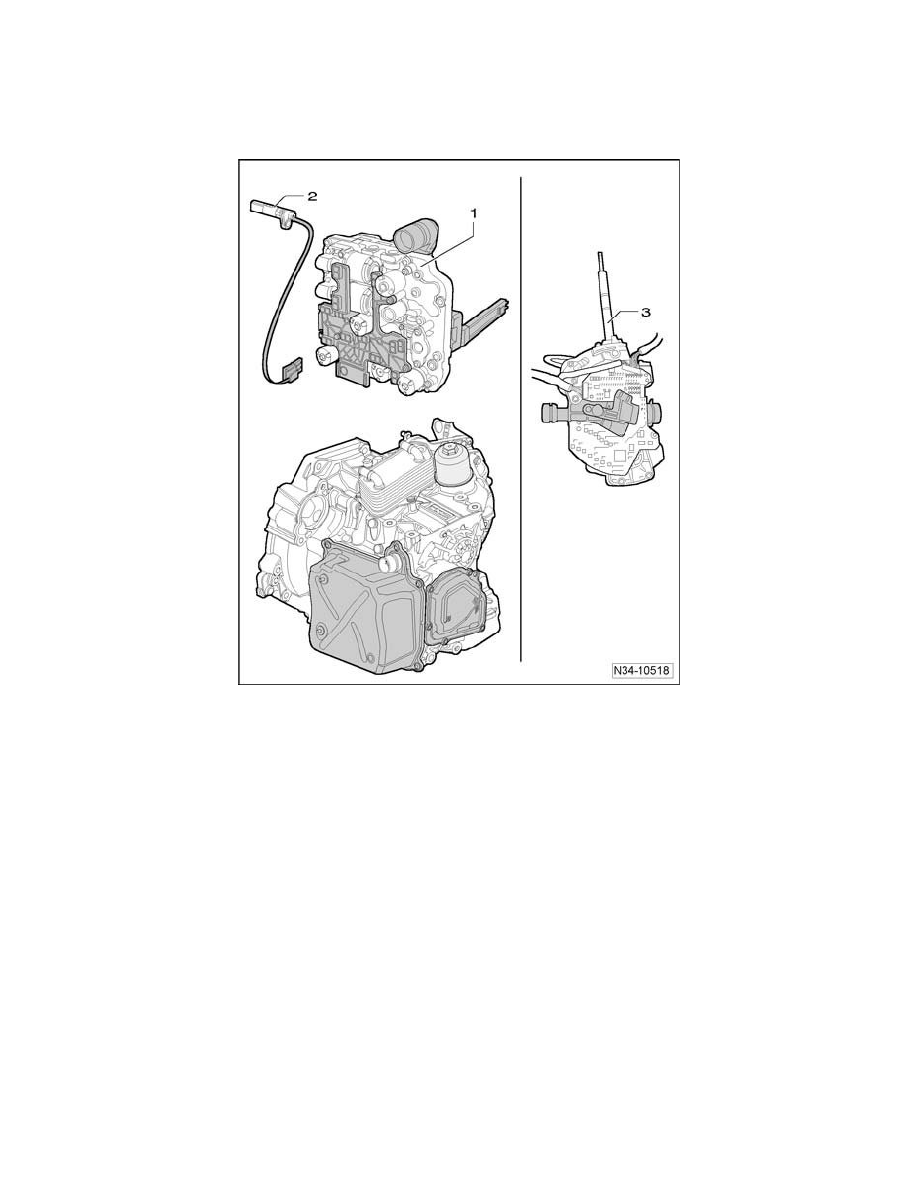

Electrical and Electronic Component Locations - 02E, 6 Speed DSG A/T AWD
Most electrical or electronic components are located in the transmission.
Only the Selector Lever Sensor System Control Module J587 and Shift Lock Solenoid N110 are located on the selector lever.
1 - Direct Shift Gearbox (DSG) mechatronic J743
^
Behind large panel cover
2 - Transmission Input Speed (RPM) sensor G182 and clutch oil temperature sensor G509
^
Remove before removing the sensor Direct Shift Gearbox (DSG) Mechatronic J743.
3 - Selector lever E313
