R32 4Motion V6-3.2L (CBRA) (2008)
-

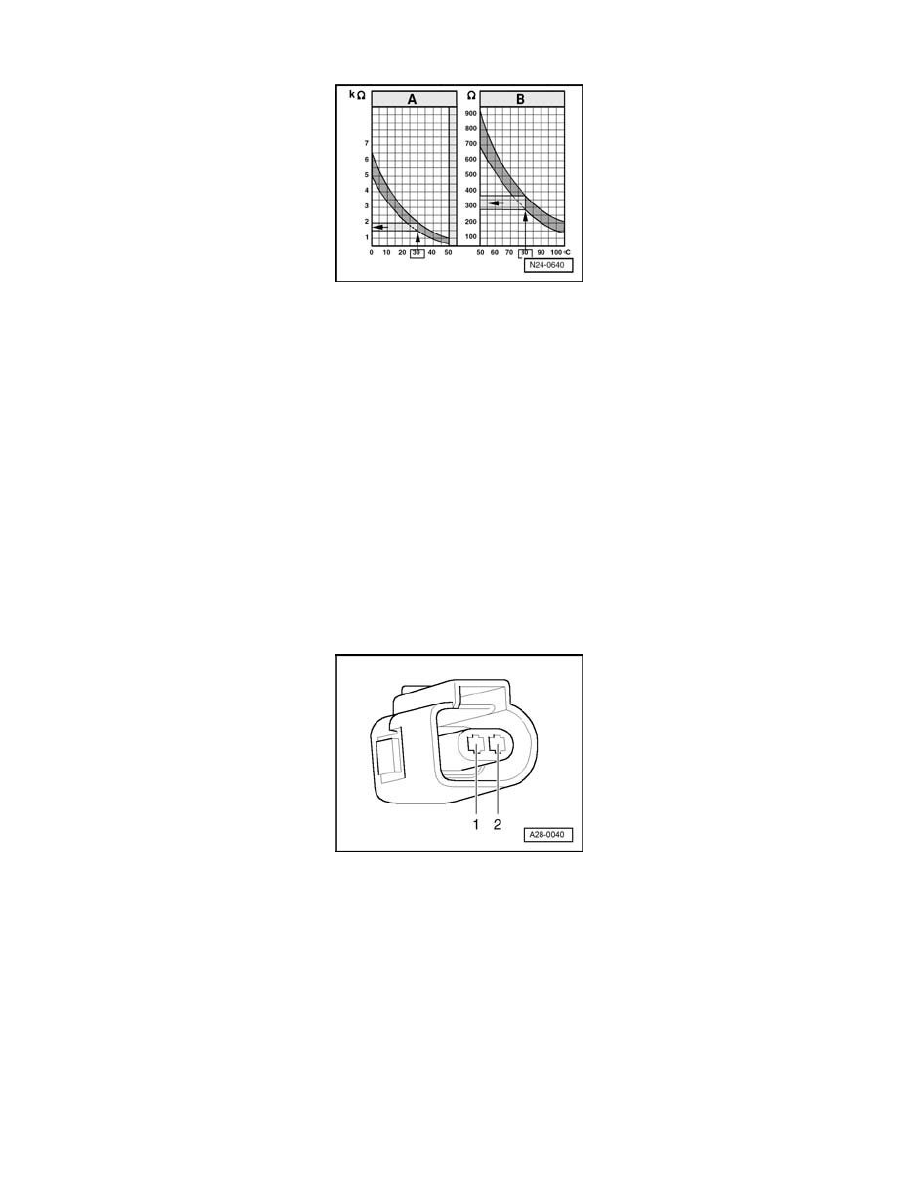

Area A: Resistance values 0 to 50 degrees C.
-
Area B: Resistance values 50 to 100 degrees C.
Specified values:
-
Range A, 30 degrees C equals a resistance of 1.5 to 2.0 kohms
-
Range B, 80 degrees C equals a resistance of 275 to 375 ohms
If any of the specified values was not obtained:
-
Replace the Engine Coolant Temperature (ECT) Sensor (on Radiator) G83.
If any of the specified values was obtained:
Checking wiring
If the specified value was not obtained:
If the manufacturers test box is being used. Perform the following step.
-
Install the test box.
If the manufacturers test box is not being used. Perform the following step.
-
Remove the Engine Control Module (ECM) J623.
-
Using a Multimeter, check the Engine Coolant Temperature (ECT) Sensor (on Radiator) G83 electrical harness connector terminals to the Engine
Control Module (ECM) J623 electrical harness connector T121 terminals for resistance.
Engine Coolant Temperature
Engine Control Module (ECM)
(ECT) Sensor (on Radiator)
J623 electrical connector
G83 electrical harness
121 terminals or test box socket
connector terminals
1
17
2
50
Specified value: 1.5 ohms Max.
If the specification was not obtained:
-
Check the wiring for an open circuit, a short circuit to each other, Battery (+), or Ground (GND).
-
Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-
If necessary, repair the faulty wiring connection.
