R32 4Motion V6-3.2L (CBRA) (2008)
Fuse Block: Locations

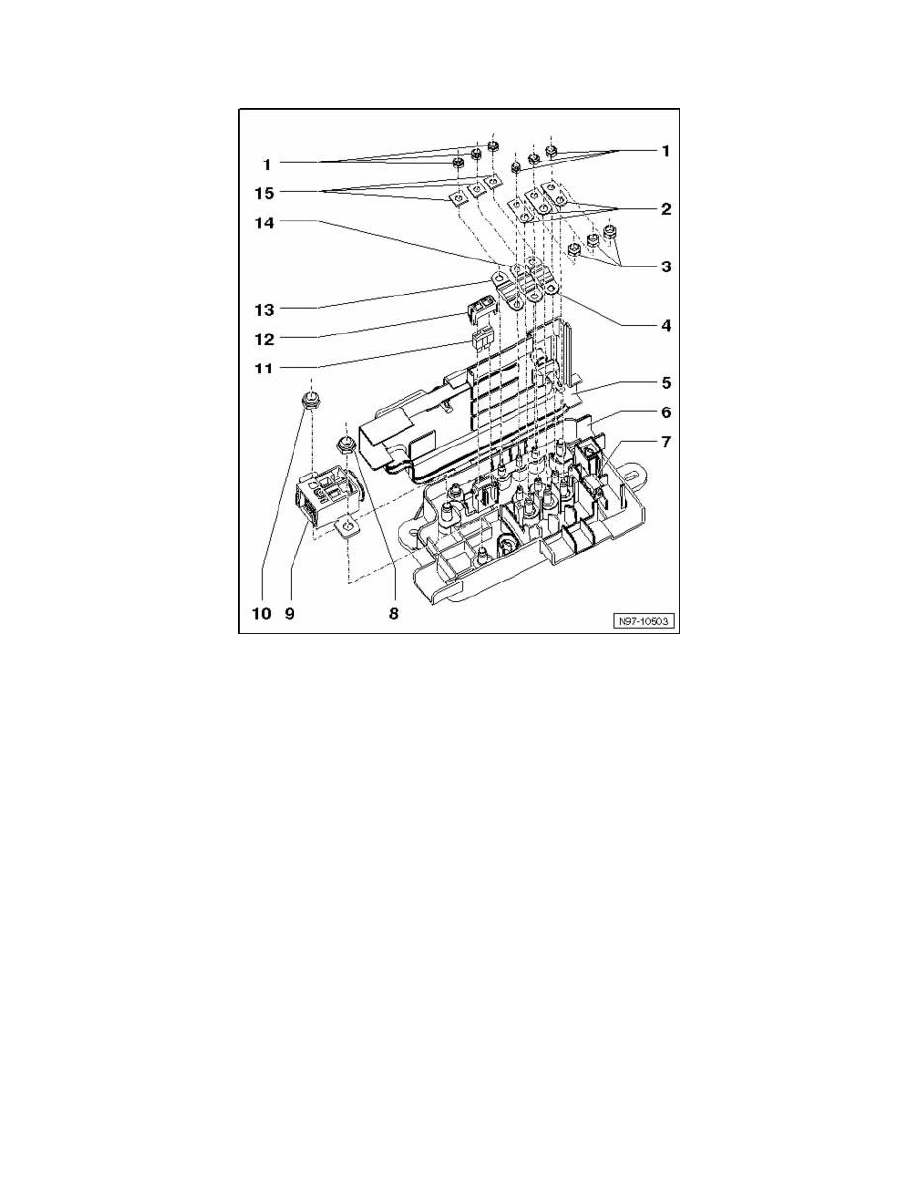

Main Fuse Box Assembly Overview, R32
1
-
Nuts M5
-
5 Nm
2
-
Power bridges
-
Power bridge to connect fuse and wire connection
3
-
Nuts M6
-
9 Nm
4
-
Fuse 3 - terminal 30 S206
-
30 amperes
5
-
Cover
-
Main fuse box cover
6
-
Housing
-
Main fuse box housing
7
-
Connector
8
-
Nut M8
-
15 Nm
9
-
Battery Interrupt Igniter N253
10
-
Nut M8
-
self-locking
-
15 Nm
11
-
Fuse 4 - terminal 30 S207
-
5 amperes
12
-
Cover
-
Fuse 4 - terminal 30 S207 cover
13
-
Fuse 1 - terminal 30 S204
-
125 amperes
14
-
Fuse 2 - terminal 30 S205
-
80 amperes
15
-
Support panel
-
Fuse support panel
