R32 4Motion V6-3.2L (CBRA) (2008)
-

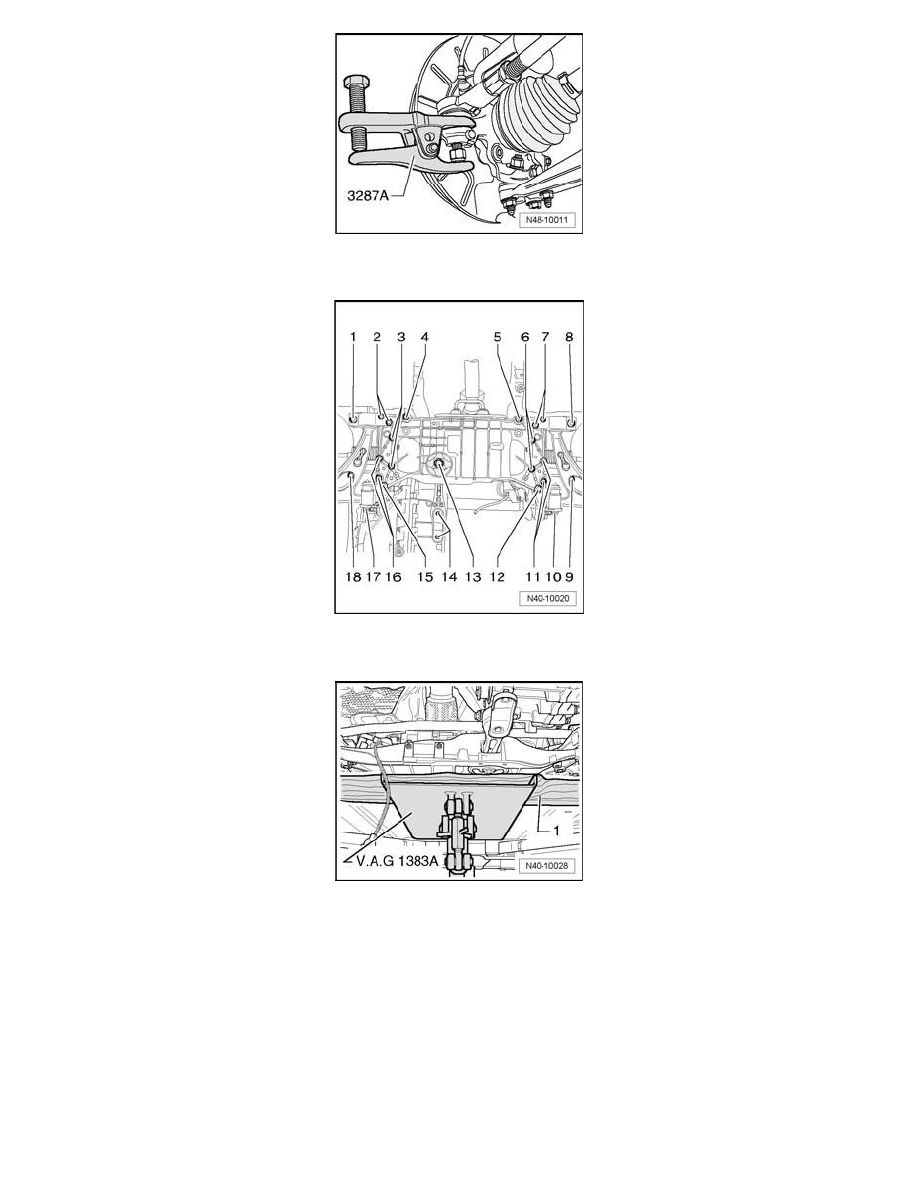

Press off tie rod end from wheel bearing housing using ball joint puller 3287A.
-
Secure subframe with brackets.
-
Remove stabilizer from subframe -11 and 16-.
-
Remove pendulum support from transmission, remove bolts -14- to do so.
-
Place engine/transmission jack V.A.G 1383 A below subframe.
-
Place, for example, a piece of wood -1- between engine/transmission jack V.A.G 1383 A and subframe.
