R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1006001.png)
Drive/Propeller Shaft: Tools and Equipment

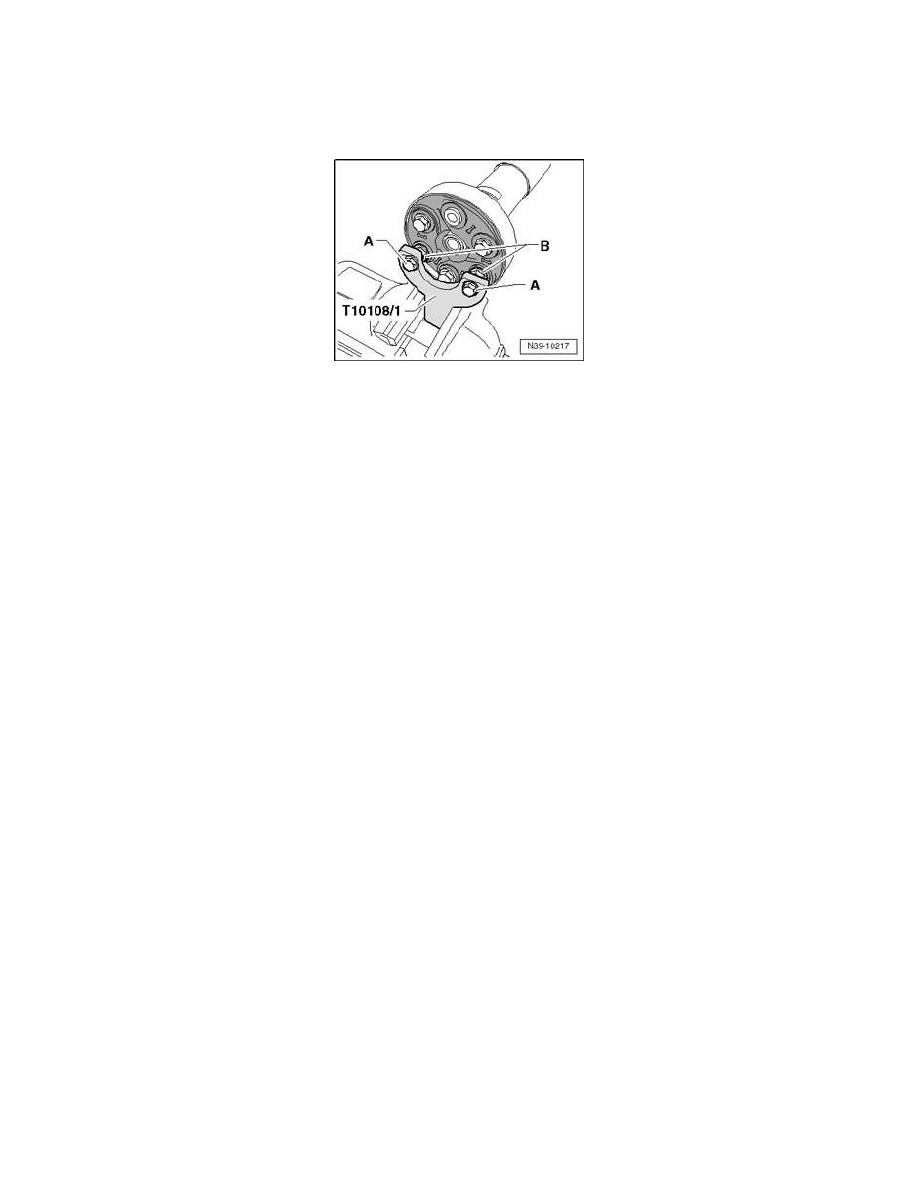

Driveshaft, Clamping in Vise with Stop Plate
Special tools, testers and auxiliary items required
^
Stop plate T10108/1
-
Secure stop plate T10108/1 to driveshaft tube flexible disc.
-
Place the nuts -B- on the bolts -A- between the stop plate T10108/1 and flexible disc.
A - Screw M10 x 70 mm with nut
B - Nut M12
