R32 4Motion V6-3.2L (CBRA) (2008)
Note:
^

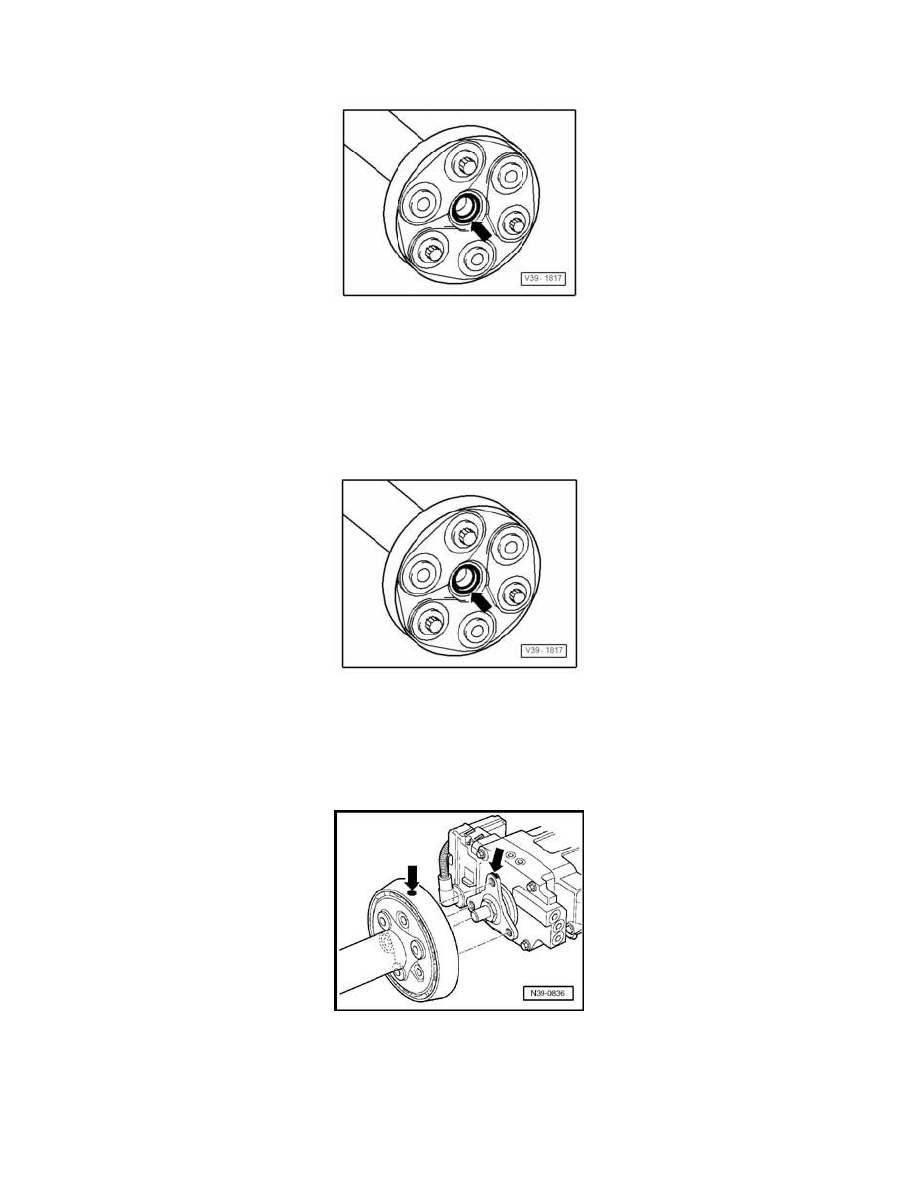

Do not tilt the driveshaft when removing it, pull it off the centering pins horizontally.
^
Sealing ring in centering bushing -arrow- must not be damaged.
^
Flexible disc and vibration dampener cannot be separated from each other.
Installing
Install in reverse order, paying attention to the following:
Note:
^
Install all driveshaft parts marked in relation to each other in same position when reinstalling.
^
Sealing rings in driveshaft flanges -arrow- must not be damaged when removing and installing. The driveshaft must be replaced if the sealing
rings are damaged.
^
Slide the driveshaft horizontally onto each centering pin.
Installation position
^
Each of the three protruding sleeves on the rear final drive flange or driveshaft engage in the flexible disc mounting holes.
-
Install the driveshaft to the rear final drive flange and the bevel box output flange so the markings -arrows- are aligned in a row.
