R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1005007.png)
Driveshaft Constant Velocity Joint
Special tools, testers and auxiliary items required
^
Thrust plate VW 401
^
Thrust plate VW 402
^
Punch VW 407
^
Punch VW 408A
^
Tensioner hooks (2) VW 552
^
Press block 40-204A

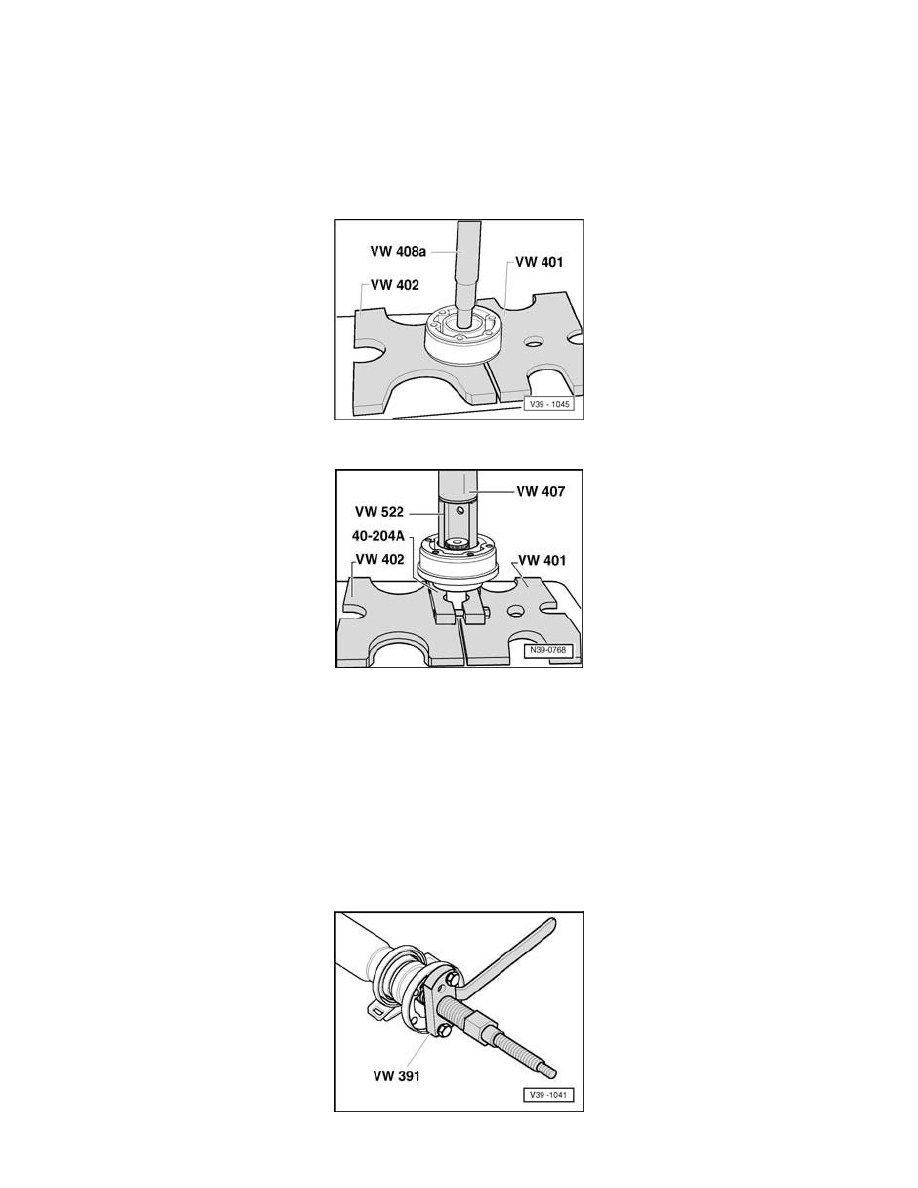

Pressing Off Constant Velocity (CV) Joint
Pressing On CV Joint
-
Press on carefully.
-
Tighten the press vlock 40-204 A. The driveshaft must not be able to slide in it or paint damage will result.
-
Correct paint damage according to the directions.
Driveshaft Flange
Driveshaft Flange
Special tools, testers and auxiliary items required
^
Puller VW 391
Pulling Off Flange
