R32 4Motion V6-3.2L (CBRA) (2008)
Control Module: Procedures

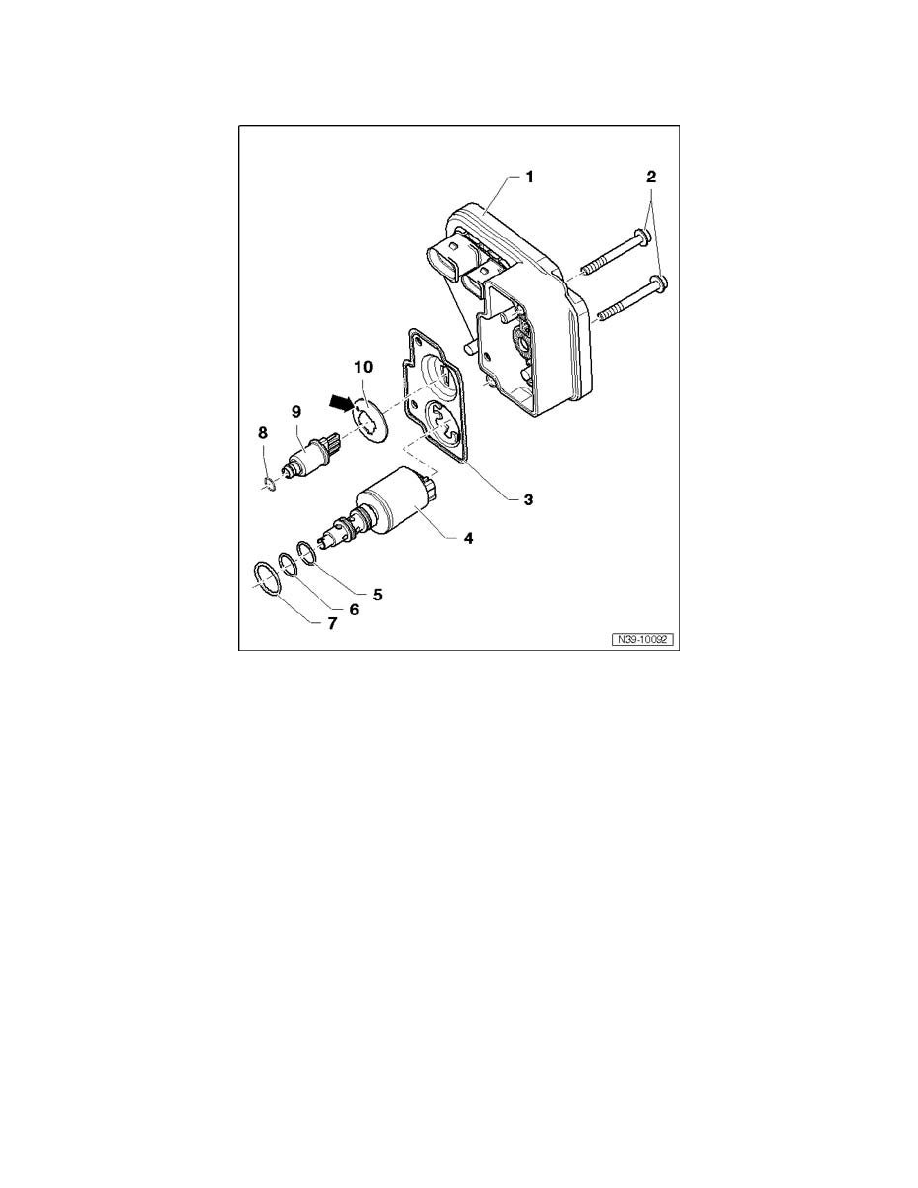

All Wheel Drive Control Module Assembly Overview
1 - All-wheel drive control module J492
^
Removing All Wheel Drive Control Module.
2 - Bolt
^
6 Nm
3 - Cover
^
With vulcanized gasket
^
Always replace
4 - Haldex clutch control valve N373
^
Is calibrated with all-wheel drive control module J492
5 - Seal
^
Diameter 12 mm
^
For Haldex clutch control valve N373
^
Coat with high performance Haldex clutch oil and insert
^
Always replace
6 - Seal
^
Diameter 11 mm
^
For Haldex clutch control valve N373
^
Coat with high performance Haldex clutch oil and insert
^
Always replace
7 - Seal
^
In Haldex clutch housing
^
Coat with high performance Haldex clutch oil and insert
^
Always replace
8 - Seal
^
For pressure sensor
^
Coat with high performance Haldex clutch oil and insert
^
Always replace
9 - Pressure sensor
