R32 4Motion V6-3.2L (CBRA) (2008)

Page 1
background image

Control Module: Locations

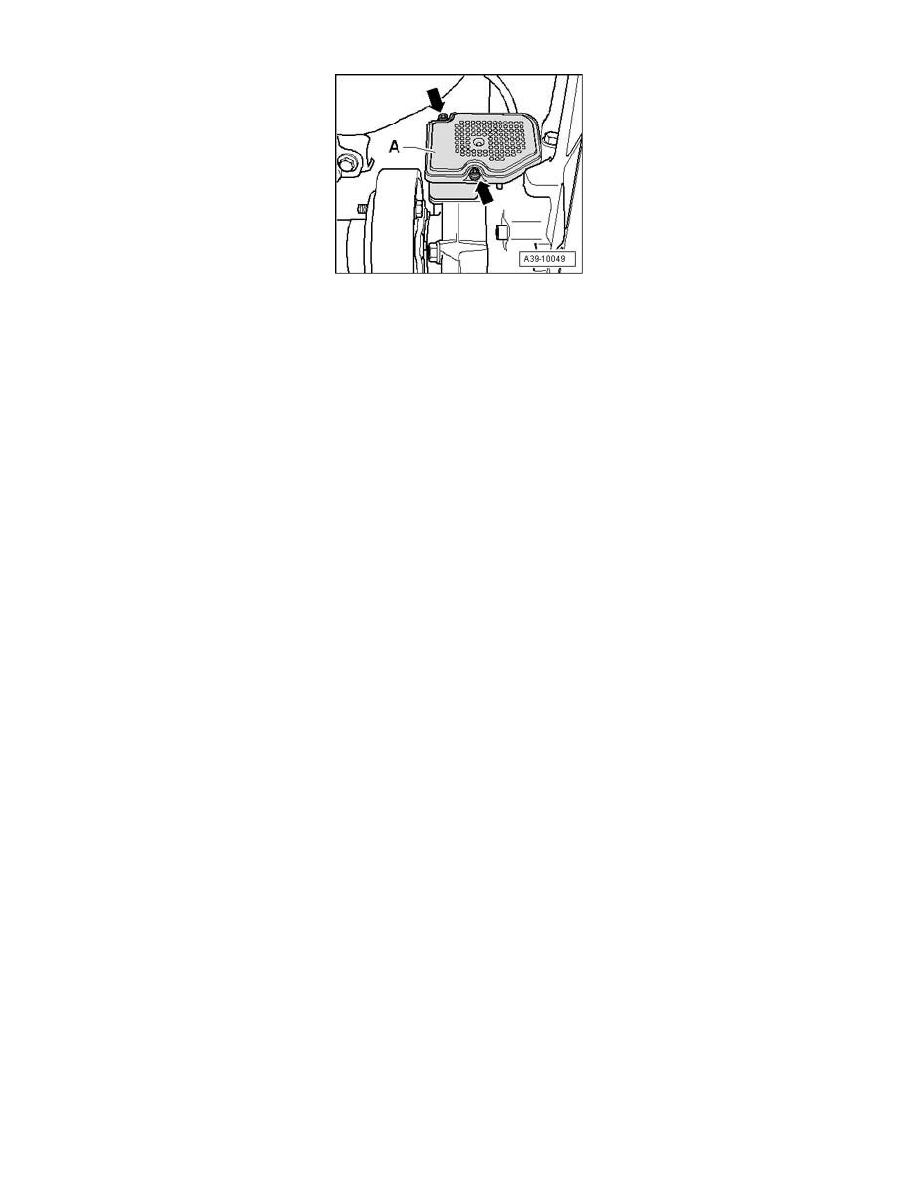

All-Wheel Drive Control Module J492

Location: Control module -A- is located in rear final drive in front left area.
