Tiguan 4Motion (5N1) L4-2.0L Turbo (CCTA) (2009)
16
Nut
‹› M12 x 1.5 x 80
‹› 70 Nm + 90° turn
‹› Self-locking.
‹› Always replace after removal.
Wheel Bearing Housing
Wheel Bearing Housing
Special tools, testers and auxiliary items required
‹› Ball joint puller (3287A)
‹› Torque wrench (V.A.G 1332)
‹› Engine/transmission jack (V.A.G 1383 A)
‹› Angle wrench (V.A.G 1756)
‹› Spreader (3424)
Removing
-
Loosen drive axle bolt to wheel hub. Refer to => [ Drive Axle Twelve-Point Bolt, Loosening and Tightening ] See: Wheel Hub/Axle Nut/Service
and Repair/Procedures.
-
Remove wheel.
-
Remove brake caliper with brake carrier and hang on body using wire.
-
Remove ABS wheel speed sensor.
-
Remove disc brake.
-
Now remove cover plate from wheel bearing housing.
-
Loosen nut of track rod ball joint, but do not unscrew yet.
‹› To protect thread, screw nut on pin a few turns.
-

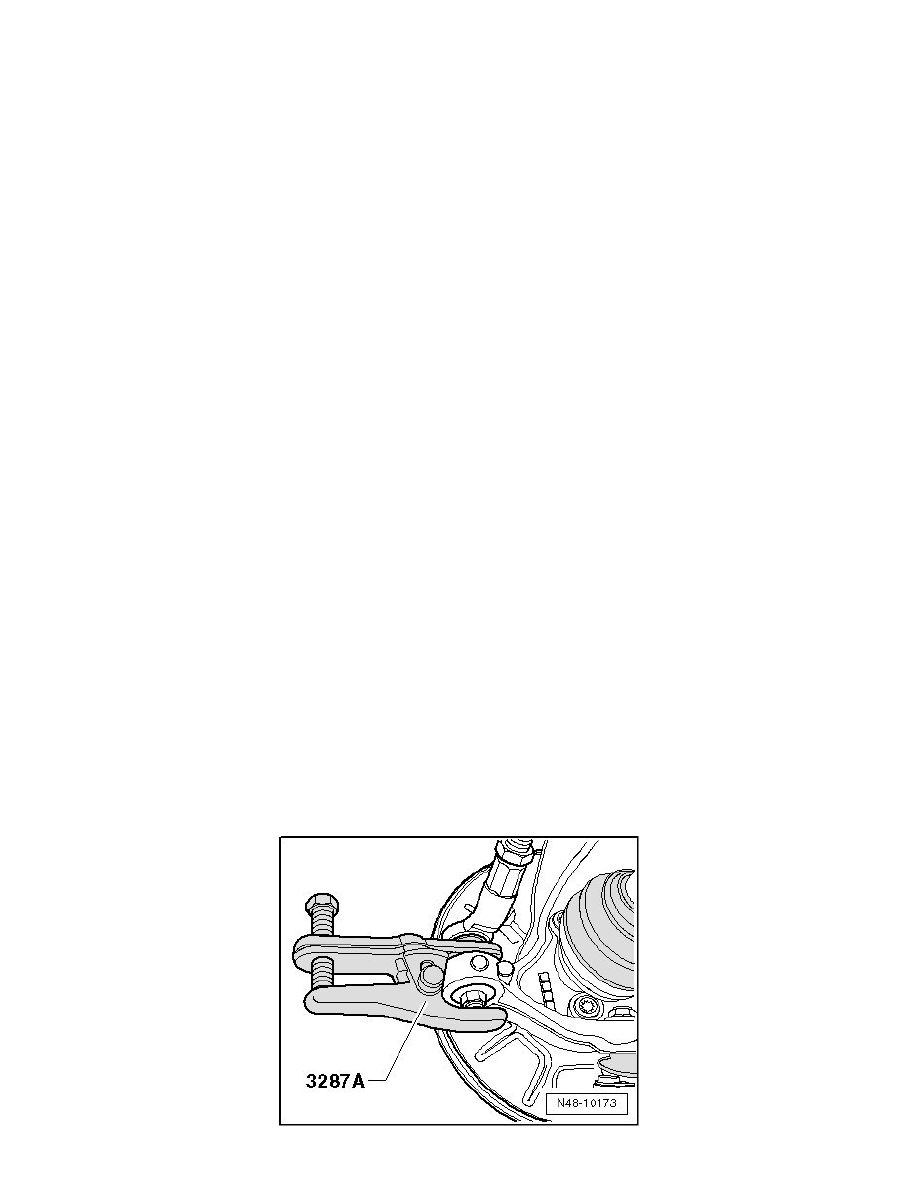

Press off track rod ball joint from wheel bearing housing using (3287A) and now unscrew nut.
