Touareg V6-3.2L (BMX) (2005)
Axle Bearing: Service and Repair
Left Flange Shaft Needle Bearing
Special tools, testers and auxiliary items required
‹› Mandrel (30 - 505)
‹› Thrust pad (30 - 506 B)
‹› Kukko 21/6 Internal puller
‹› Kukko 22/2 Counter-support
Removing
-
Remove front final drive. Refer to --> [ Front Final Drive ] See: Rear Final Drive/Service and Repair/Removal and Replacement/Front Final Drive
.
-
Remove left flange shaft and seal. Refer to --> [ Left Flange Shaft Seal ] See: Rear Final Drive/Seals and Gaskets/Service and Repair/Left Flange
Shaft Seal.
-

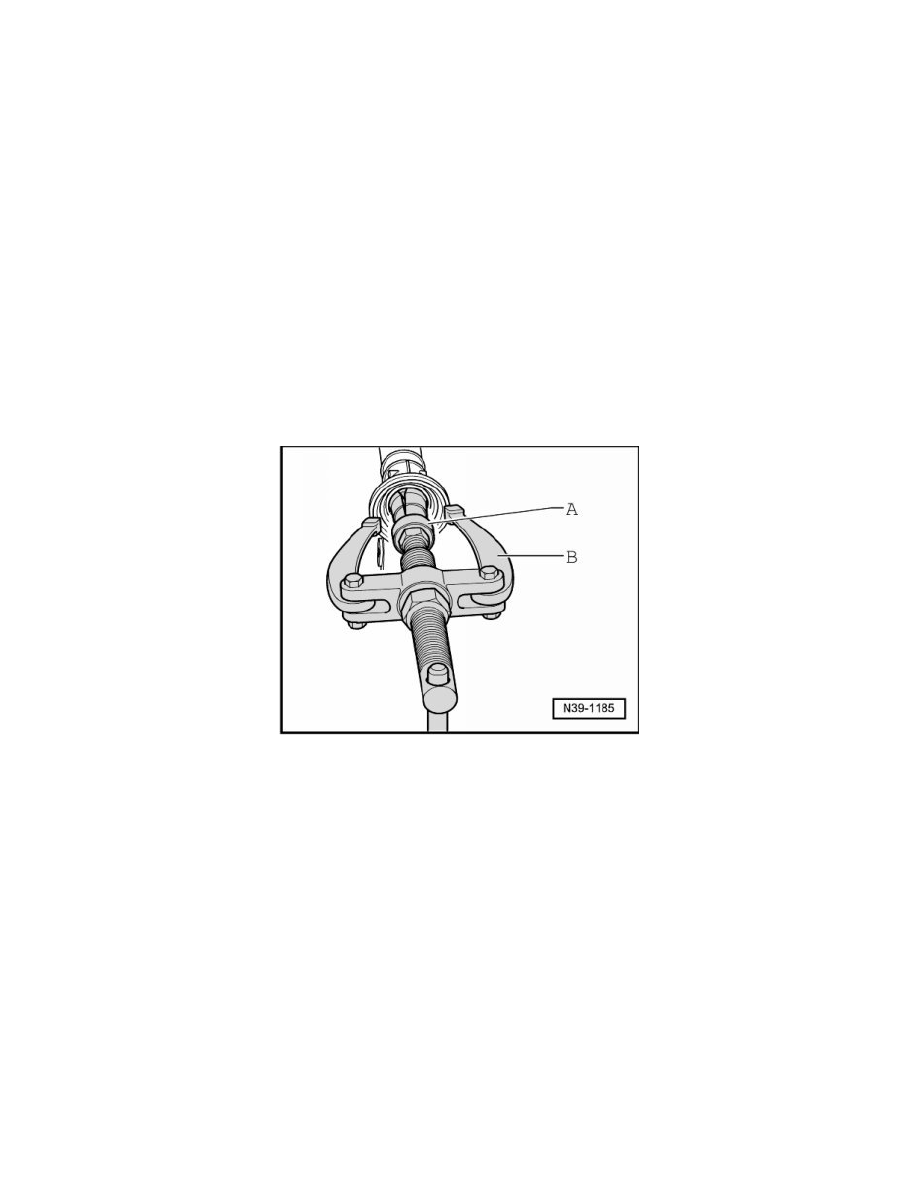

Pull out the left flange shaft needle bearing.
A Internal puller 37 to 46 mm, e.g. Kukko 21/6
B Counter support, e.g. Kukko 22/2
Installing
-
Drive in the left flange shaft needle bearing - A - until seated.
