C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Installing components
Install:
-

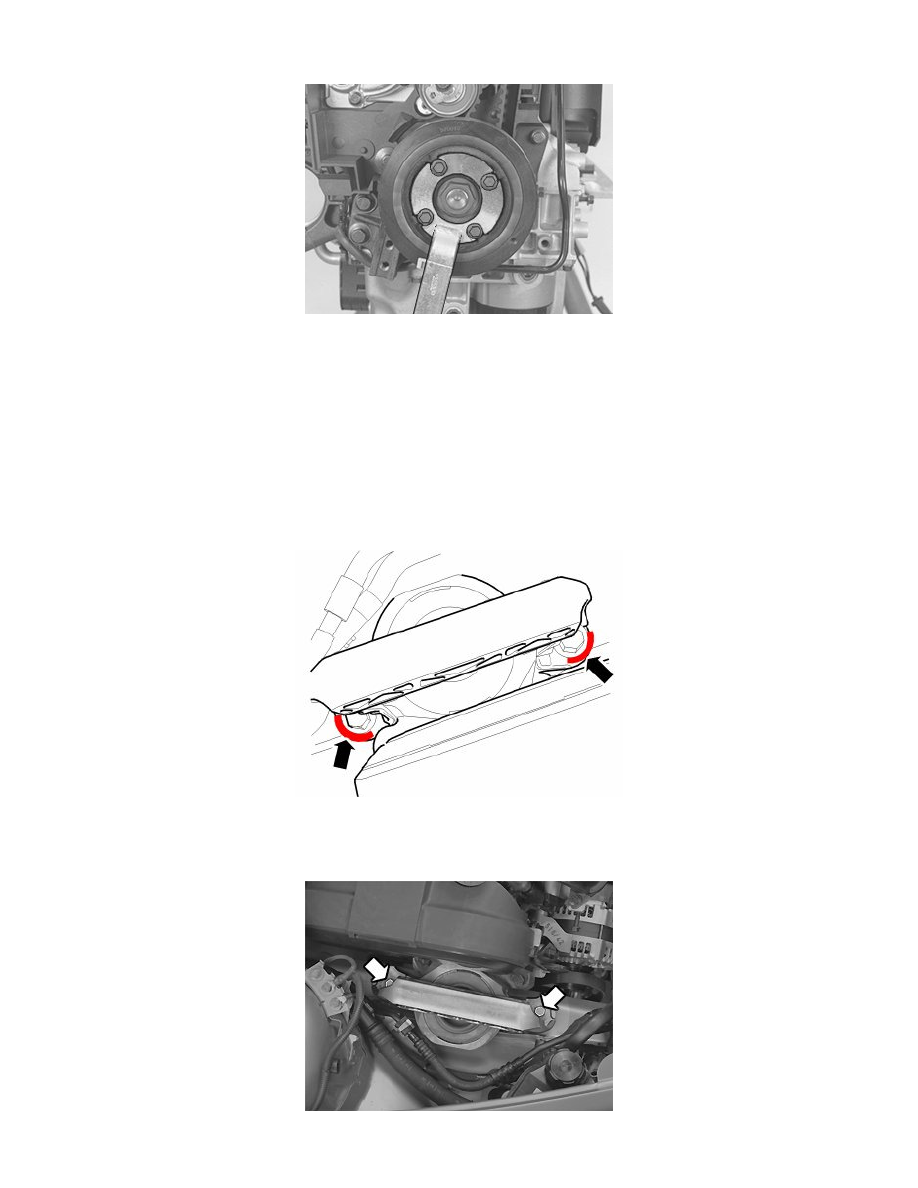

the vibration damper. Tighten. See: Tightening torque. See: Specifications/Mechanical Specifications/Tightening Torque. Use counterhold 999
5433 COUNTERHOLD See: Tools and Equipment/999 5433 Counterhold. Remove the counterhold and install new screws. Tighten. See:
Tightening torque. See: Specifications/Mechanical Specifications/Tightening Torque.
-
the auxiliaries belt. Turn the belt tensioner up clockwise. Use: 999 7109 Wrench See: Tools and Equipment/999 7109 Wrench. Position the belt.
-
the front belt covers. Tighten the screw
-
the upper belt cover
-
the pressure line for the power steering pump. Remove the seals
-
the fender liner on right-hand side
-
the right front wheel. See: Wheels See: Maintenance/Wheels and Tires/Wheels/Service and Repair.
Installing the engine pad
Install the engine pad according to the markings.
Installing engine mounting
Install:
