C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Heating and Air Conditioning
Blower Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 12008
Page 46

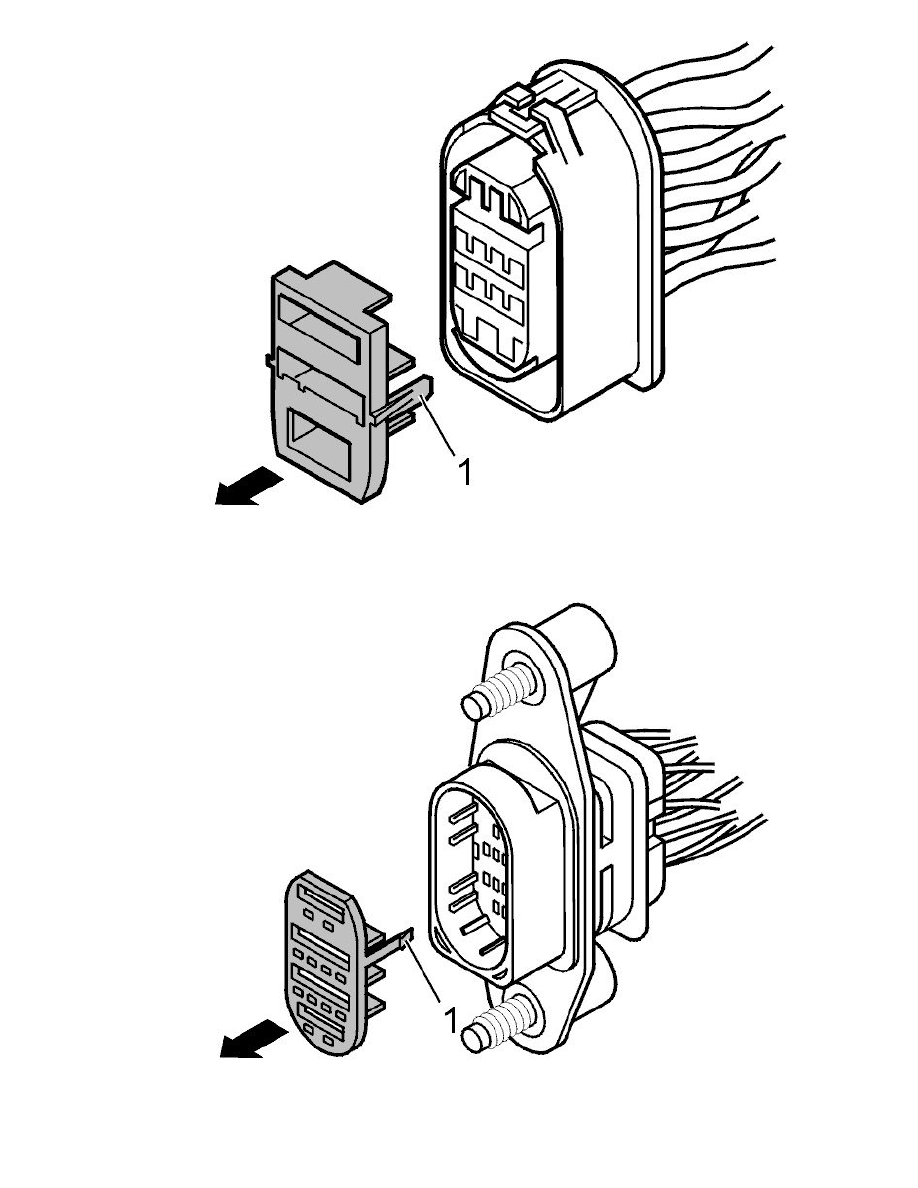

Angle out the catches on both sides.
Pull out the secondary lock.
Disassembling primary lock
