C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Intake Air Plenum: Service and Repair
Induction pipe
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.
Preparatory work
Removing components
Remove the air cleaner (ACL) module. See: Fuel system pressure release, B5254T7 .
Drain the fuel system. See: Air filter module. See: Air Cleaner Housing/Service and Repair.
Remove:
-
the hose clamp for the rubber hose on the throttle body (TB). Move the hose to one side. Disconnect the throttle body (TB) connector
-
the brake vacuum hose on the intake manifold.
Removal
Removing upper intake manifold

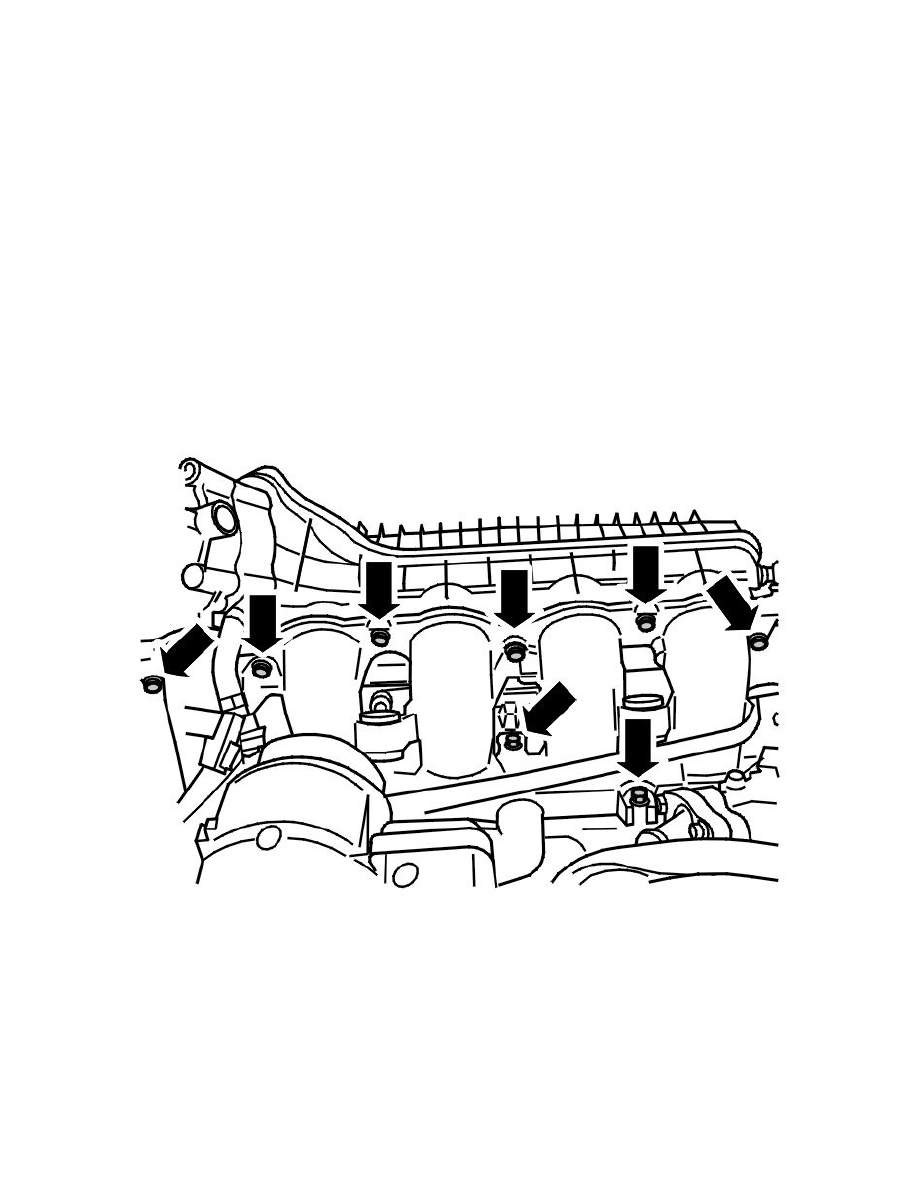

Remove the 6 screws for the upper section of the intake manifold. Disconnect the vacuum hoses from the intake manifold. Put the pipe to one side.
Removing the fuel rail
