S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)

Page 38
background image

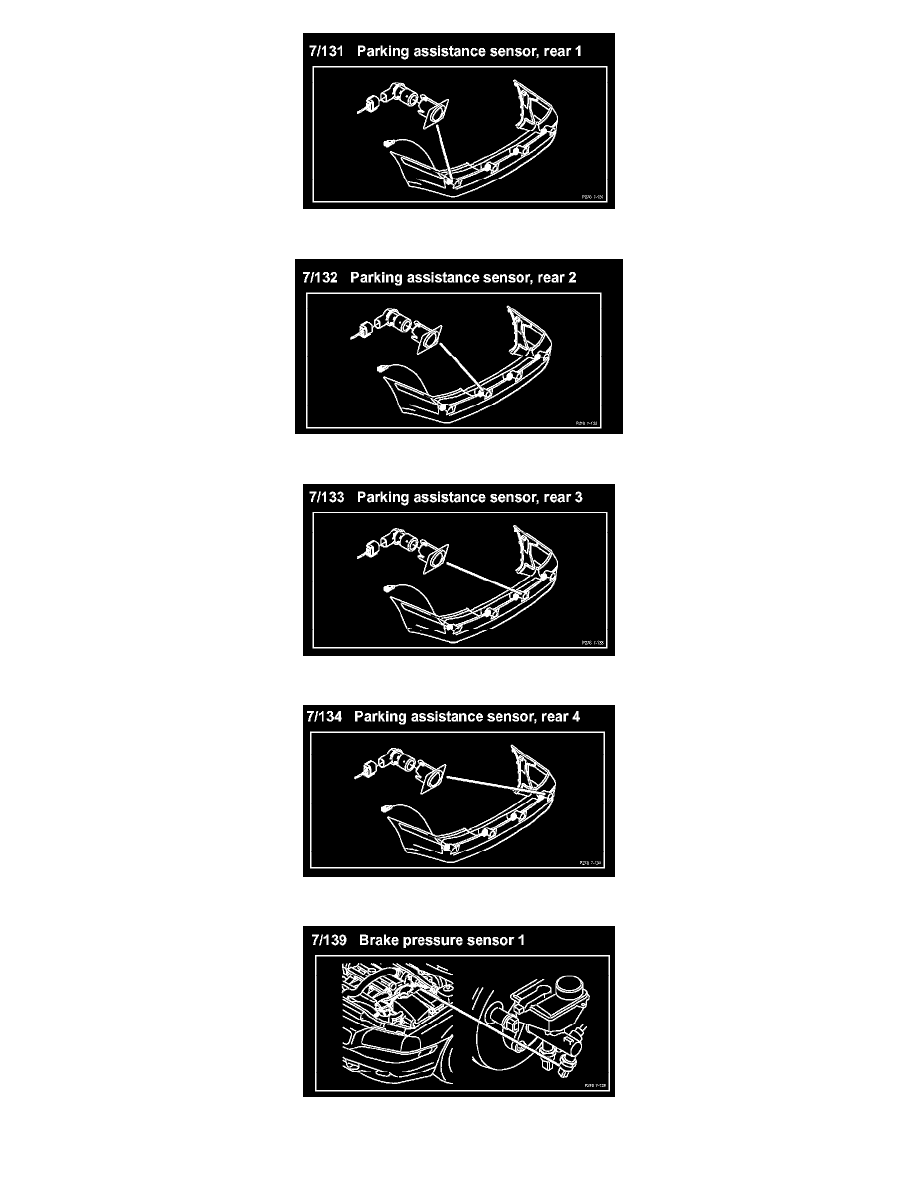

7/131 Parking Assistance Sensor, Rear 1

7/132 Parking Assistance Sensor, Rear 2

7/133 Parking Assistance Sensor, Rear 3

7/134 Parking Assistance Sensor, Rear 4

7/139 Brake Pressure Sensor 1
