S80 L6-3.2L VIN 98 B6324S (2007)
Alternator Pulley: Service and Repair
Generator pulley, generator
Operation number: 32171-2
Note! Some variation in the illustrations may occur, but the essential information is always correct.
Removal
Note! Removal steps in this procedure may contain installation details.
Remove the generator. See: Service and Repair
Note! The rotor shaft is left-hand threaded.

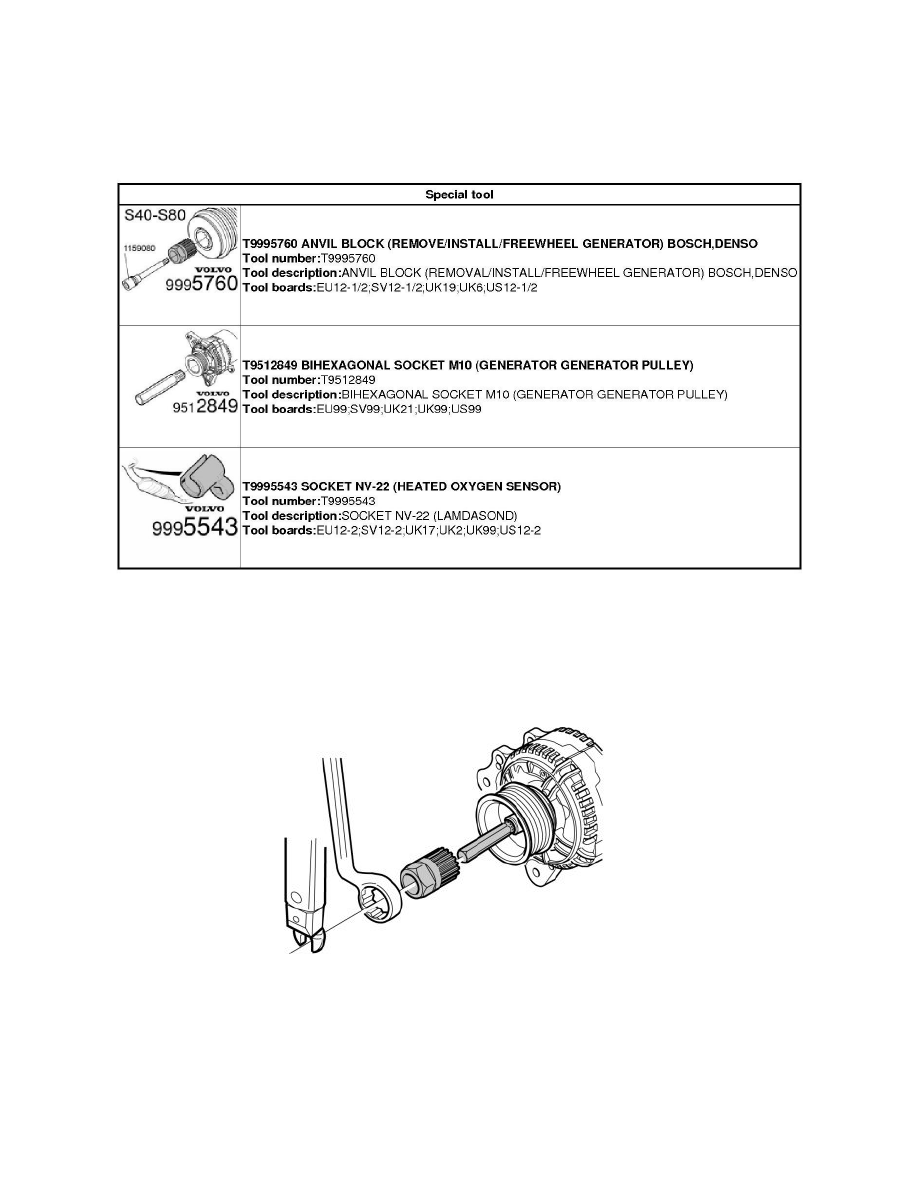

Applies to belt pulley with freewheel
999 5760 Counterhold See: Tools and Equipment/999 5760 Counterhold
951 2849 Twelve tooth spanner M10 See: Tools and Equipment/951 2849 Twelve Tooth Spanner M10.
Torque: M12, 80 Nm
