V40 L4-1.9L Turbo VIN 29 B4204T3 (2002)
-------------------------------------------------
Fault-Tracing Information
Fault-tracing information
Condition

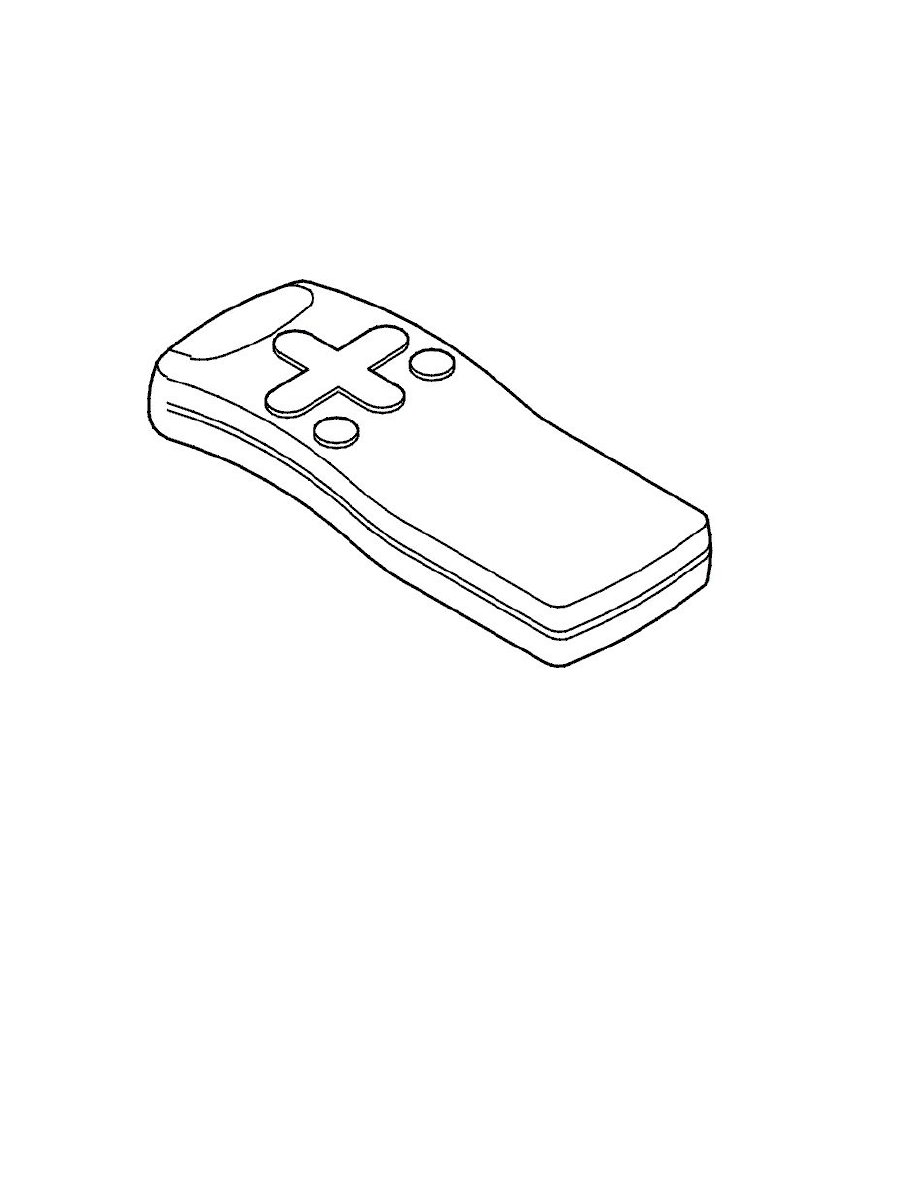

A remote control is available for the audio unit as an option.
The function of the remote control can be checked using the inbuilt diagnostic functions in the audio unit.
Substitute value
-
None.
Possible source
-
Drained batteries in the remote control
-
Loose connections, contact resistance or oxidation in the battery terminals in the remote control
-
The infra-red lens is obstructed on the audio unit or remote control
-
Defective remote control
-
Defective audio unit.
Fault symptom[s]
-
Cannot be controlled with the remote control.
Checking The Remote Control, Audio HU1205
Checking the remote control, Audio HU1205
Checking remote controls
Activate the diagnostic menu. See Diagnostic functions Audio HU1205 (audio module) See: Description and Operation/Diagnostic Functions Audio
HU1205 (Audio Module).
Check the function of the remote control buttons according to 1.4 Button of remo-con. See Diagnostic functions Audio HU1205 (audio module) See:
Description and Operation/Diagnostic Functions Audio HU1205 (Audio Module).
