XC90 AWD V8-4.4L VIN 85 B8444S (2005)

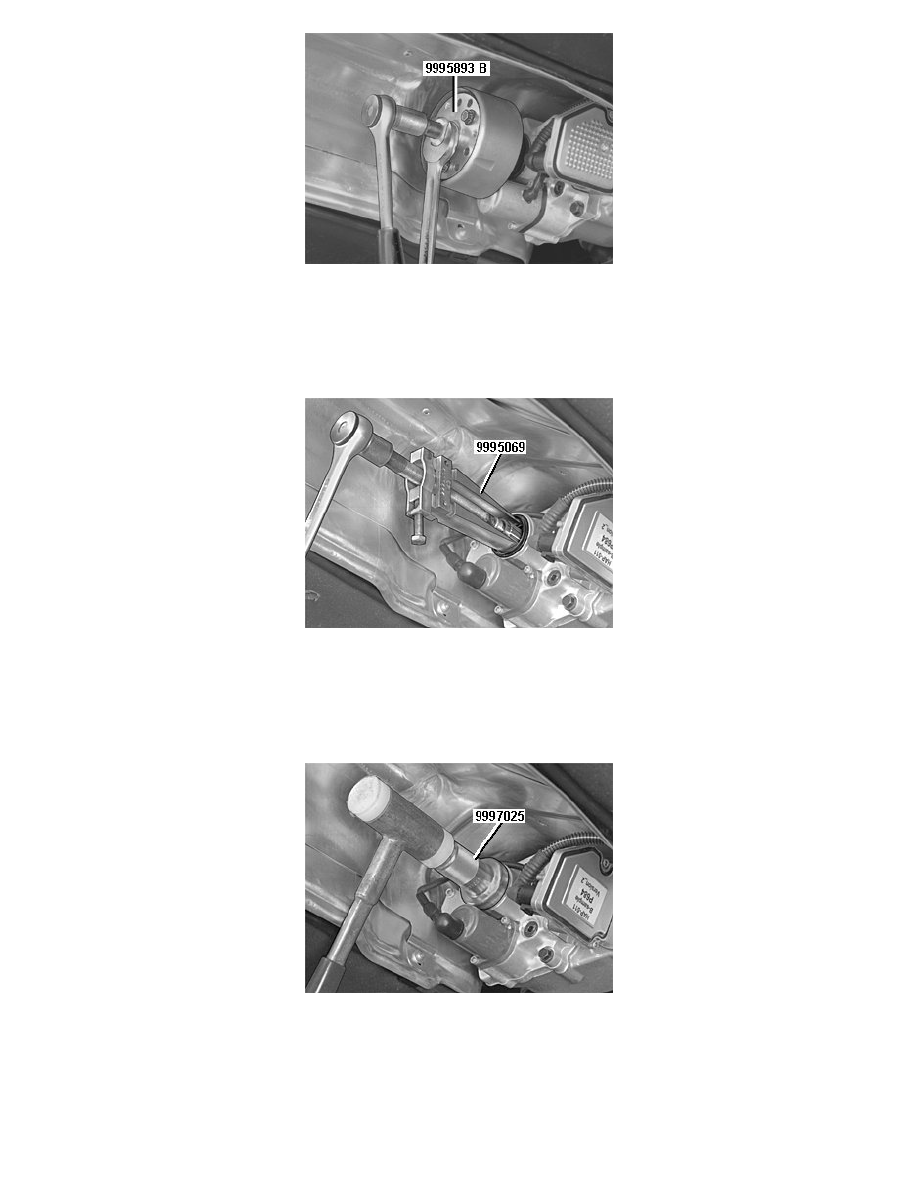

Note! For cars with a vibration damper on the Active on Demand Coupling (AOC) flange. Use 55 mm long screws for the puller. The oil pump
may be damaged if too long screws are used.
Check that the sealing surfaces of the flange are free of faults. Replace the flange with a new one if there is a fault.
Removing the seal
Remove the Active on Demand Coupling (AOC). Use puller 999 5069 EXTRACTOR See: Tools and Equipment/999 5069 Extractor.
Thoroughly check that no seal residue remains.
Installation
Installing the seal
Lubricate the new seal. Use oil for the active on demand coupling (AOC).
Use drift 999 7025 Drift Haldex coupling See: Tools and Equipment/999 7025 Drift Haldex Coupling when installing. Tap in the seal until the head of
the drift is against the active on demand coupling (AOC) housing.
Installing the flange
