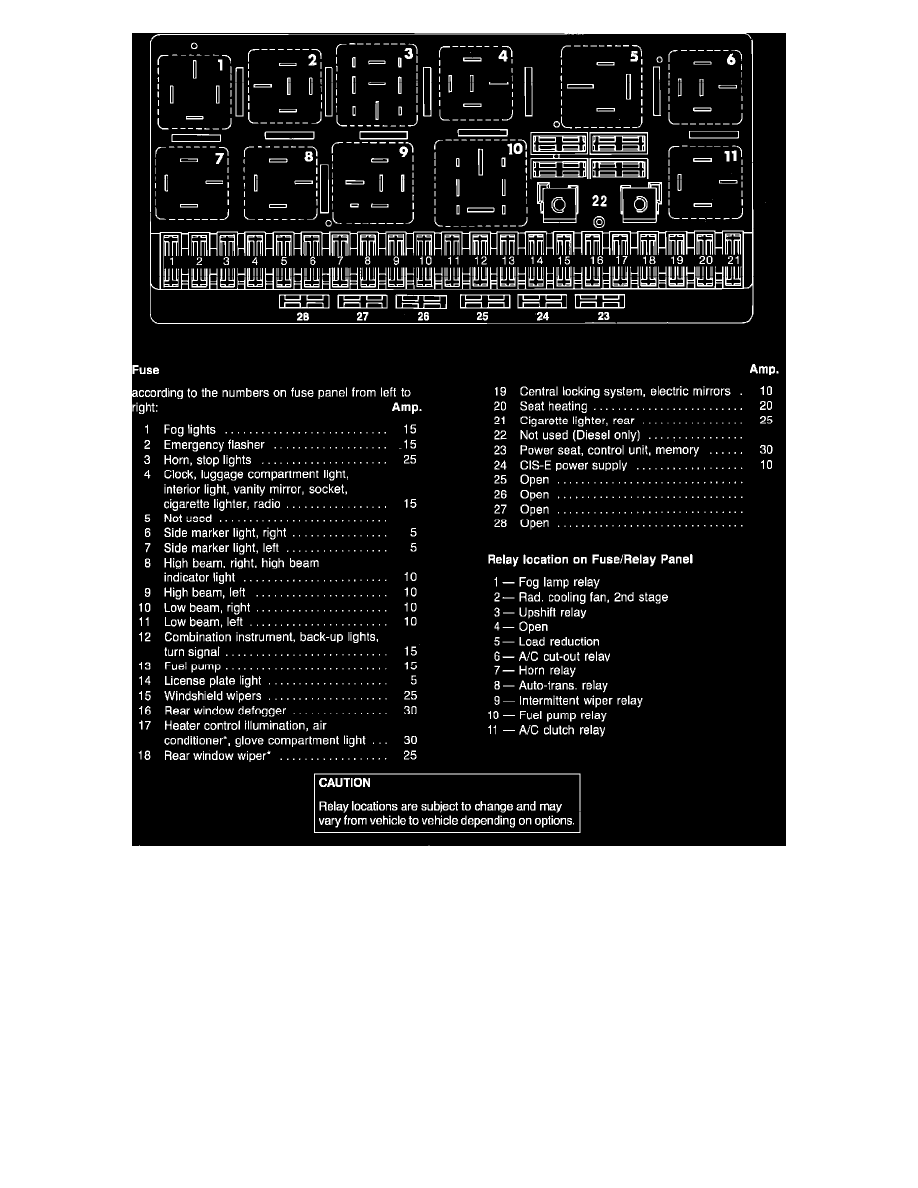

Fig. 30 Fuse/Relay Panel

Heating and Air Conditioning
Compressor Clutch Relay
Component Information
Locations
