Audi Workshop Service and Repair Manuals > 4000S Quattro L5-2144cc 2.14L SOHC (JT) (1985) > Heating and Air Conditioning | Relays and Modules - HVAC | Compressor Clutch Relay | Component Information | Locations

Control Module HVAC > < Refrigerant Oil|Capacity Specifications|Page 3094

Page 1

background image

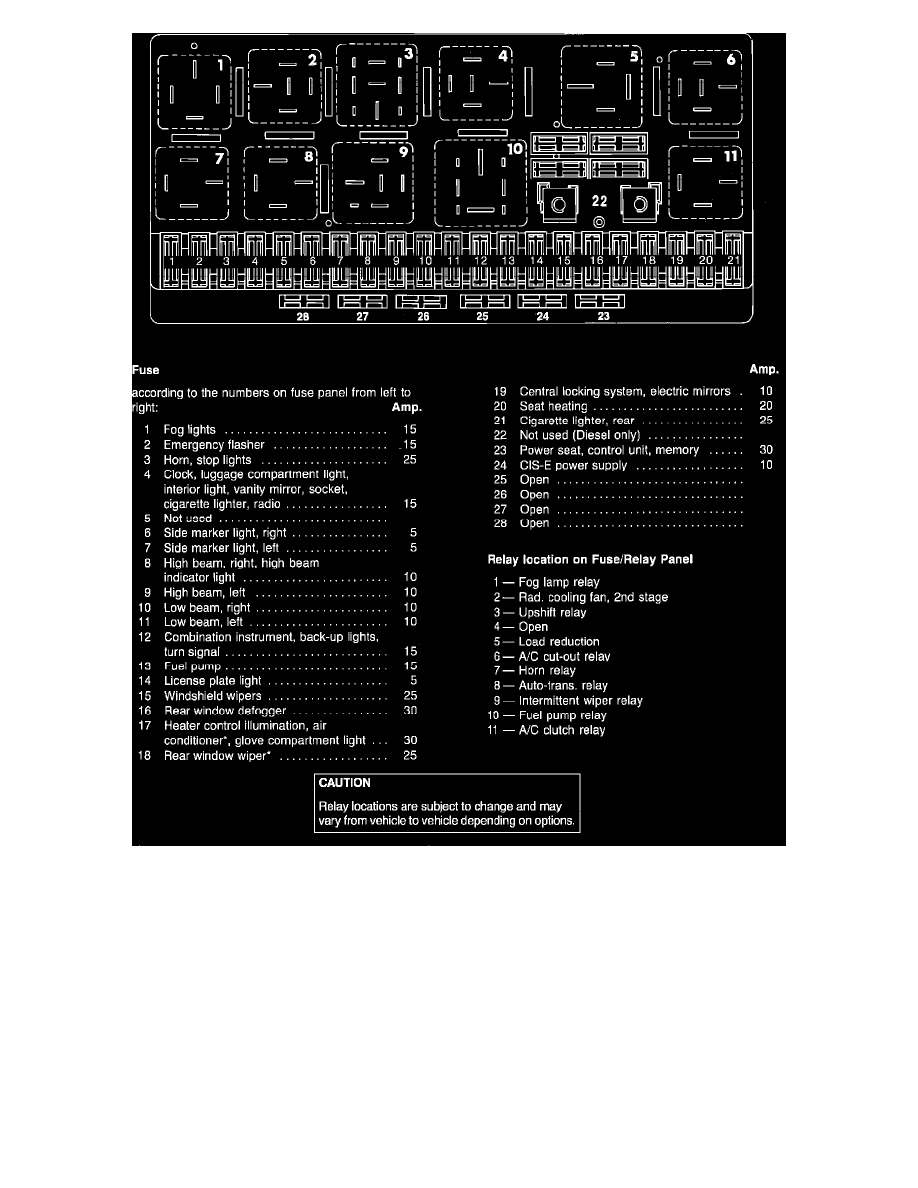

Fig. 30 Fuse/Relay Panel

Heating and Air Conditioning
Relays and Modules - HVAC
Compressor Clutch Relay
Component Information
Locations

Control Module HVAC > < Refrigerant Oil|Capacity Specifications|Page 3094
