5000S Sedan L5-2226cc 2.22L SOHC (KZ) (1985)
Powertrain Management
Fuel Delivery and Air Induction
Thermo Time Switch
Component Information
Locations
Page 1

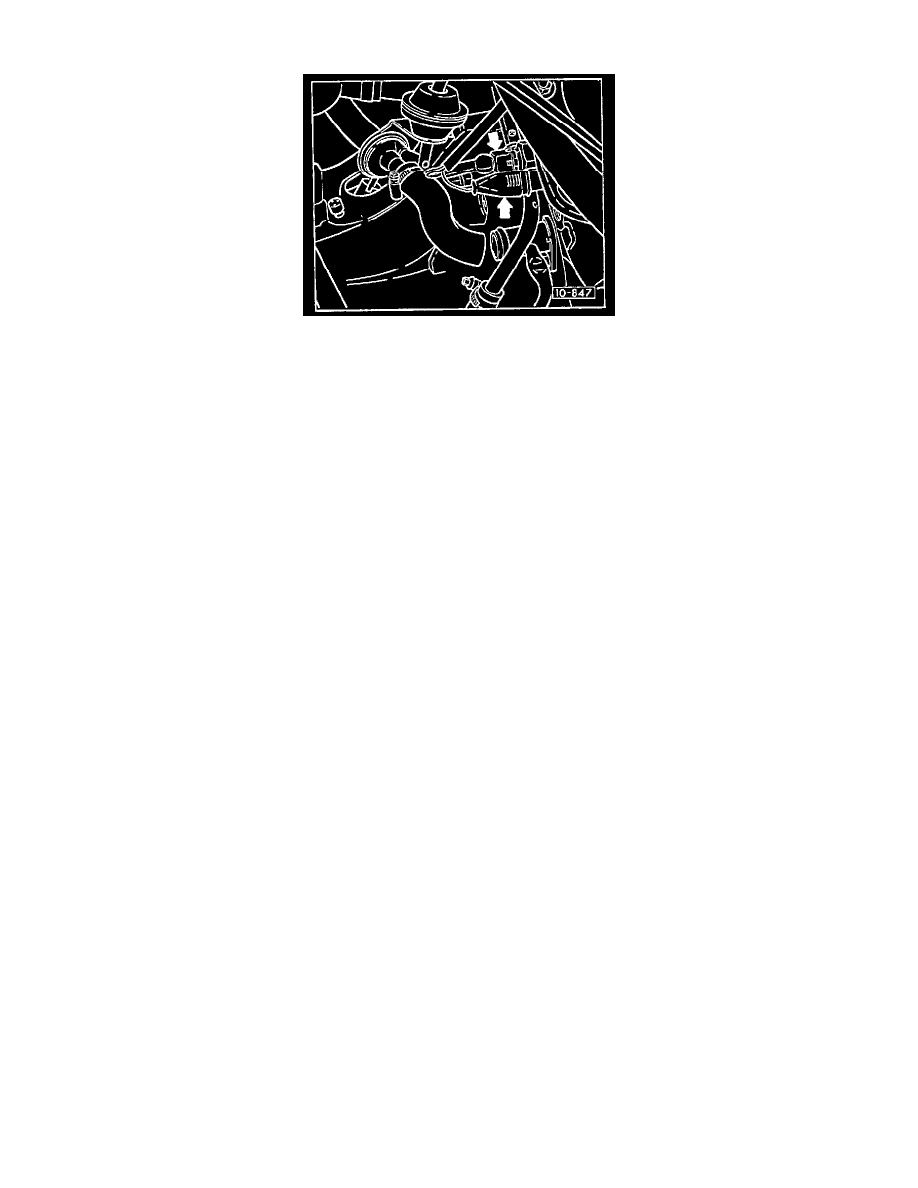

Thermo Time Switch: Locations
Located next to Coolant Guage temperature sensor. (top arrow)
