90 Quattro Sport V6-2.8L (AFC) (1995)

Page 1
background image

Fuel Pump Relay: Locations

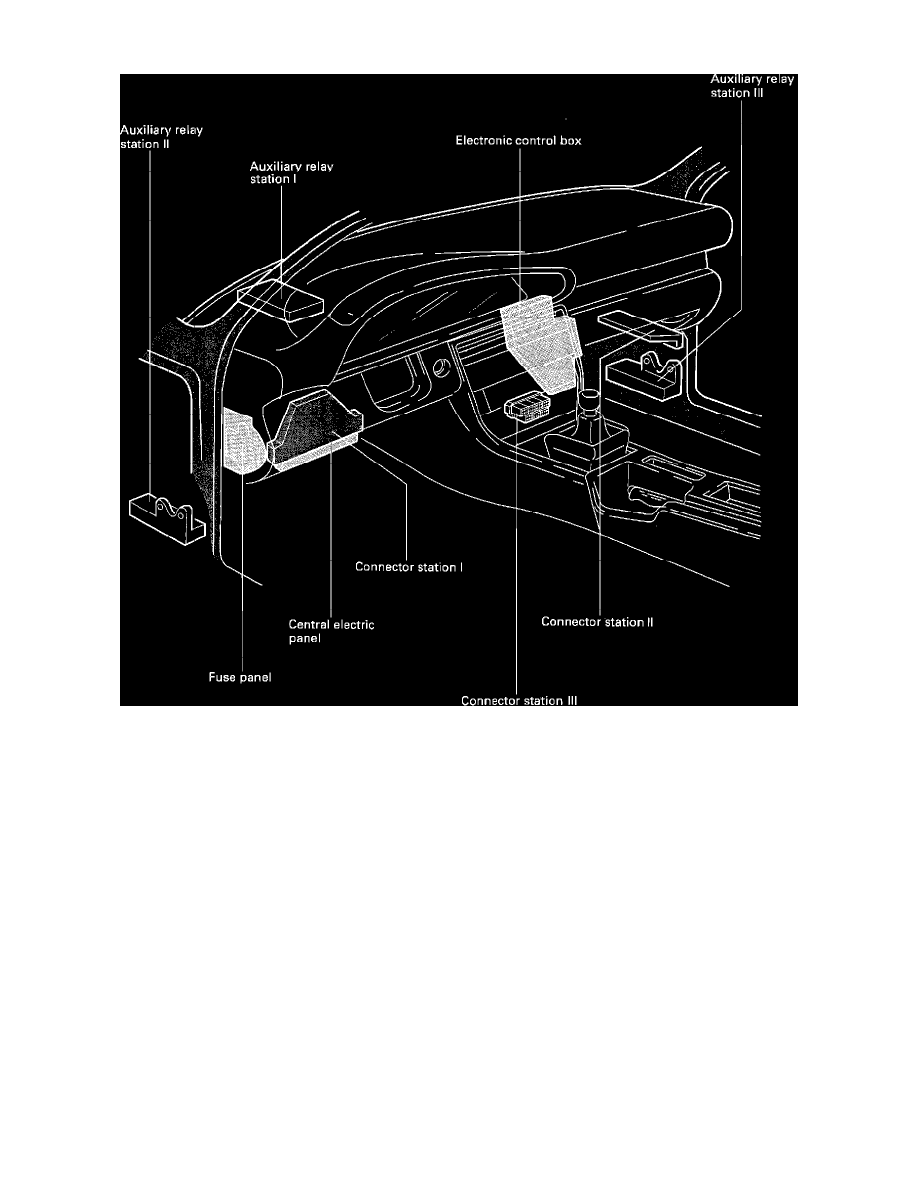

Relay And Connector Station Locations

The Fuel Pump Relay located in the Central Electric Panel, under the left side dash.
