90 Quattro Sport V6-2.8L (AFC) (1995)

Page 1
background image

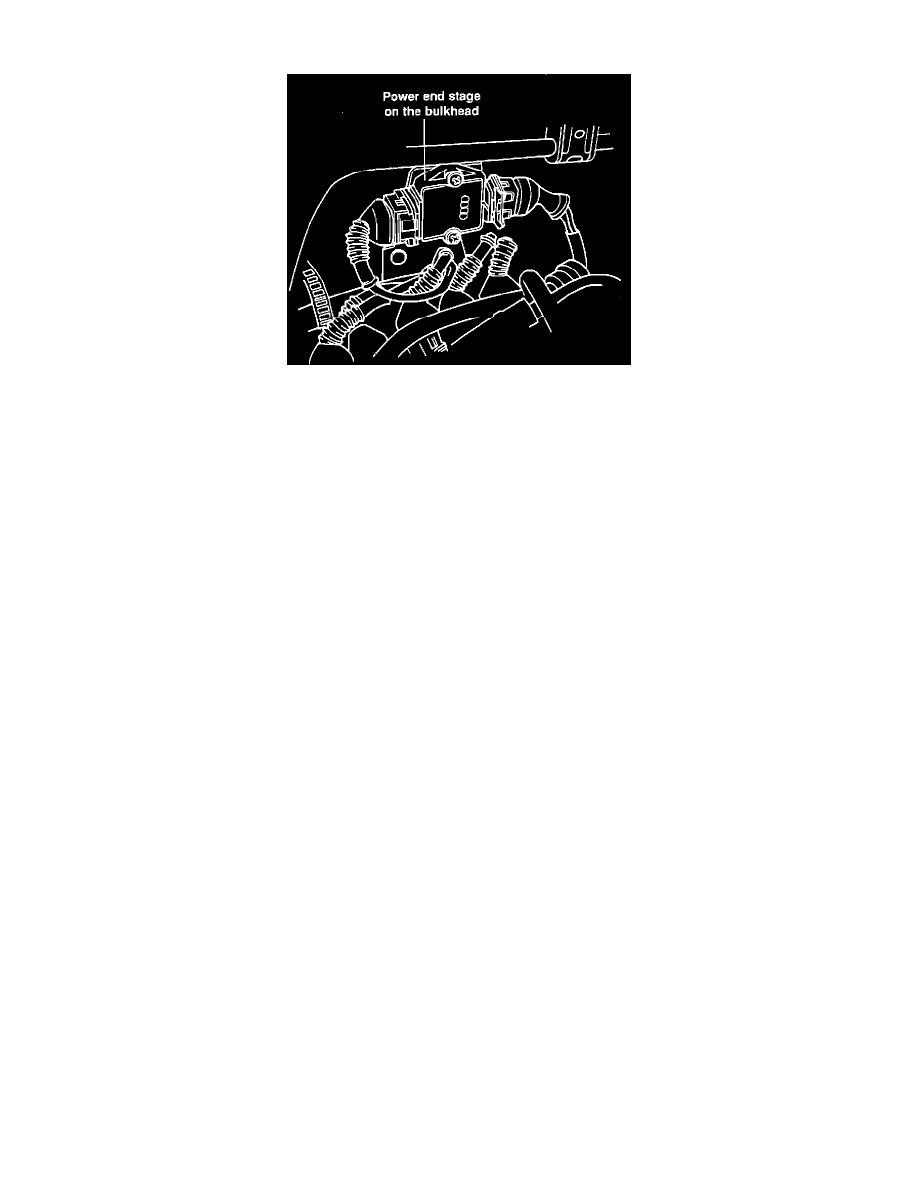

Ignition Power Stage: Locations

Ignition Power Stage

The Power Stage is mounted to the firewall behind the engine.
