Drive Belt: Diagrams

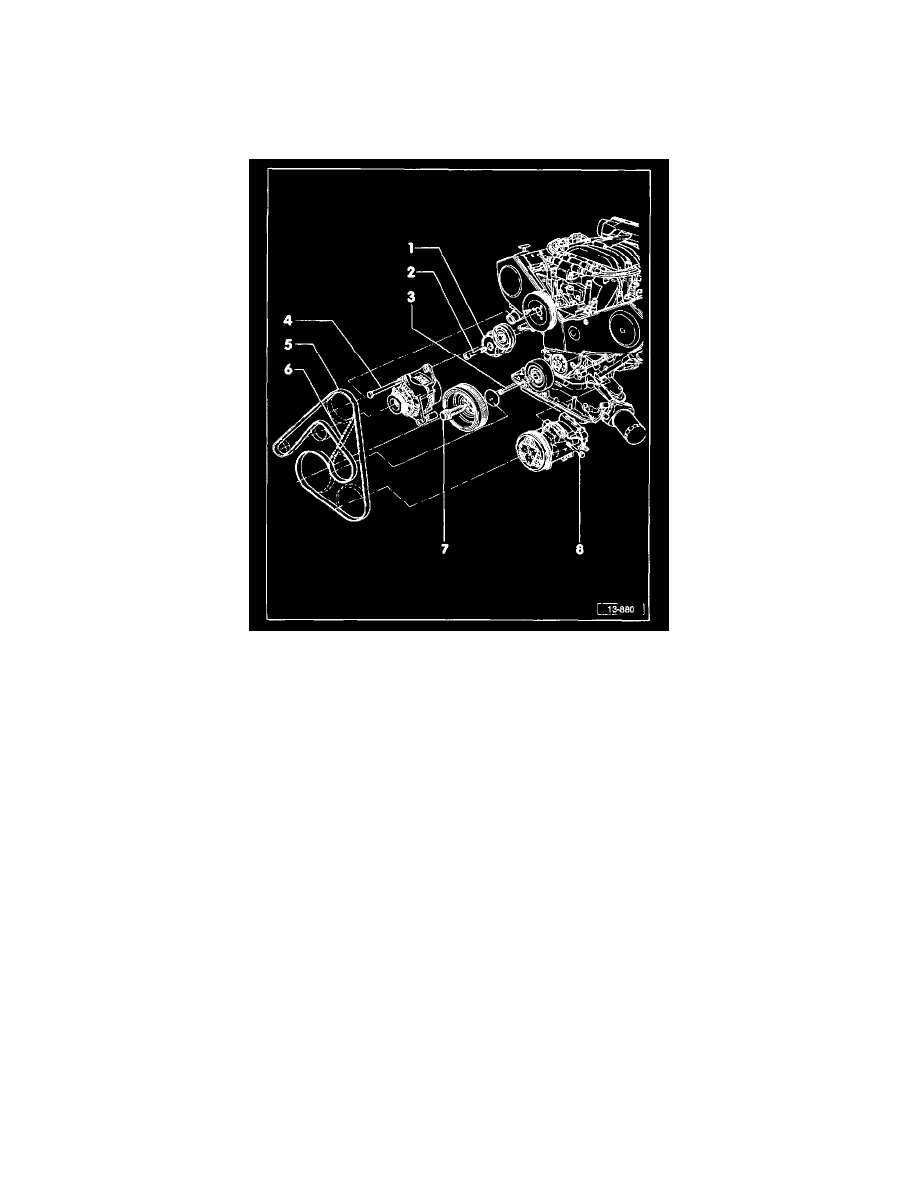

Ribbed belt and pulley, assembly

Note:

There are two different types of ribbed belt, identified as versions A and B.
Ribbed belt versions, identifying, refer to Application and ID  See: Application and ID
Illustration shows only version B.

1. Tensioner
2. 55 Nm (41 ft lb)
3. 20 Nm (15 ft lb)
4. 20 Nm (15 ft lb)
5. Ribbed belt
6. Belt routing w/o A/C

Not applicable to vehicles for USA and Canada

7. Bolt
8. 20 Nm (15 ft lb)
