| Exploded view - sliding/tilting sunroof |
| 1 - | Sliding/tilting sunroof frame |
| q | Removing and installing → Chapter |
| 2 - | Seal |
| q | Removing and installing → Chapter |
| 3 - | Front trim panel |
| q | Removing and installing → Chapter |
| 4 - | Cover |
| 5 - | Bolt |
| q | 2.5 Nm |
| 6 - | Bolt |
| q | 4 Nm |
| 7 - | Motor (sliding sunroof adjustment control unit -J245-) |
WARNING
|
| q | Removing and installing → Chapter |
| 8 - | Water drain hose |
| q | Removing and installing → Chapter |
| 9 - | Bolt |
| q | 3 Nm |
| 10 - | Frame for guide plate |
| q | Removing and installing → Chapter |
| 11 - | Wiring harness |
| 12 - | Bolt |
| q | 3.5 Nm |
| l | Observe tightening sequence. |
| l | First tighten front bolts on right side, then on left side. |
| l | First tighten rear bolts on right side, then on left side. |

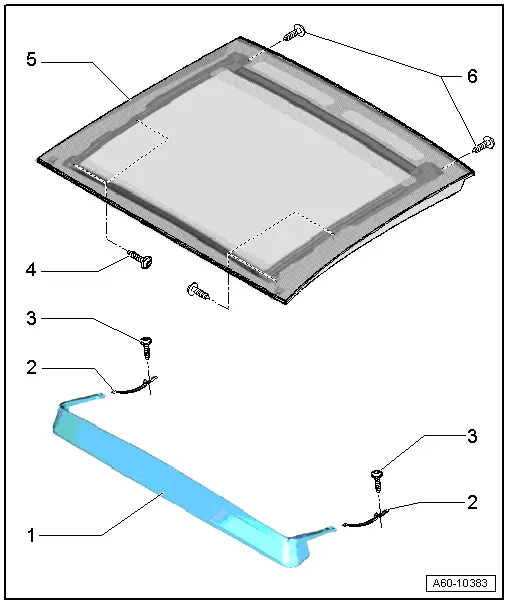

| Exploded view - glass panel, wind deflector |
| 1 - | Wind deflector |
| q | Removing and installing → Chapter |
| 2 - | Spring |
| q | When installing spring, slide it towards rear into retainer |
| 3 - | Bolt |
| q | 1.5 Nm |
| 4 - | Bolt |
| q | 5.5 Nm |
| 5 - | Glass panel |
| q | Removing and installing → Chapter |
| 6 - | Bolt |
| q | 5.5 Nm |
