A1

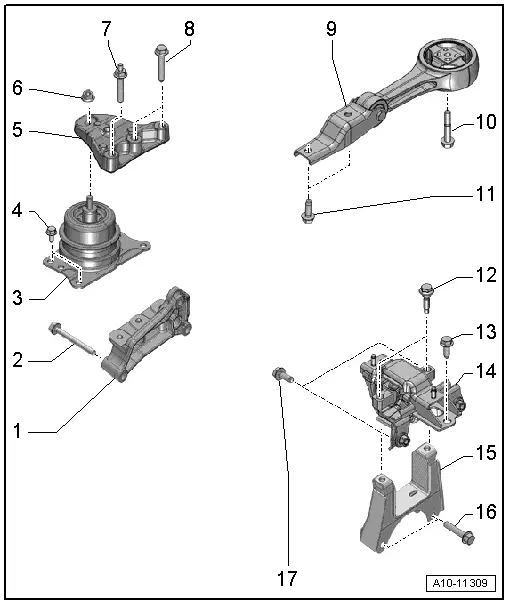

Exploded view - assembly mountings

Exploded view - assembly mountings
1 - Engine support
2 - Bolt
q   Tightening torque → Engine, mechanics; Rep. gr.10
3 - Engine mounting
q   Removing and installing → Engine, mechanics; Rep. gr.10
4 - Bolt
q   Tightening torque → Engine, mechanics; Rep. gr.10
5 - Support arm
6 - Nut
q   Only loosen this part if engine mounting -item 3- is to be renewed
q   Tightening torque → Engine, mechanics; Rep. gr.10
7 - Stud
q   Tightening torque → Engine, mechanics; Rep. gr.10
8 - Bolt
q   Tightening torque → Engine, mechanics; Rep. gr.10
9 - Pendulum support
10 - Bolt
q   40 Nm + 90°
q   Renew
11 - Bolt
q   30 Nm + 90°
q   Renew
12 - Bolt
q   40 Nm + 90°
q   Renew
13 - Bolt
q   Renew
q   Tightening torque and sequence → Fig.
14 - Gearbox mounting
15 - Gearbox support
16 - Bolt
q   40 Nm + 90°
q   Renew
17 - Bolt
q   Renew
q   Tightening torque and sequence → Fig.


Gearbox mounting - tightening torque and sequence
  Note
Renew bolts which are tightened by turning through a specified angle.
–  Tighten bolts in 3 stages in the sequence shown:
  N34-1555
StageBoltsTightening torque/tightening angle
1.-A, B, C-Screw in bolts by hand until they make contact
2.-A, B, C-50 Nm
3.-A, B, C-Turn 90° further
