Exploded view - gear selector cable and gate selector cable

Lubricate all bearings and moving surfaces with grease -G 000 450 02-.

1 -	Gear selector cable

q	Detaching and securing at gearbox selector lever → Fig.

q	Removing and installing → Chapter

q	Adjusting → Chapter

2 -	Gate selector cable

q	Removing and installing → Chapter

q	Adjusting → Chapter

3 -

Bush

q	If damaged, renew gate selector cable

4 -	Retaining clips

q

Renew

q	Take care not to damage selector cables when removing.

5 -	Selector housing

6 -	Cable support bracket

7 -

Grommet

8 -

Bush

9 -

Bolt

q

20 Nm

10 -	Cable end-piece

q	Secures gate selector cable to gate relay lever

q	Allocation → Fig.

q	Detaching from gate selector cable → Fig.

q	Levering off gate relay lever → Fig.

q	Pressing onto gate relay lever → Fig.

11 -	Securing clip

q	Removing → Fig.

q

Renew

12 -	Cable end-piece

q	Secures gear selector cable to gearbox selector lever

q	Allocation → Fig.

q	Detaching from gear selector cable → Fig.

13 -

Nut

q

20 Nm

q	Self-locking

q

Renew

14 -	Gearbox selector lever

q	With damper weight

q	Fitting → Fig.

q	Installation position → Fig.

q	After installing, adjust selector mechanism → Chapter

15 -	Slide block

16 -	Gate relay lever

q	Installation position → Fig.

q	Detaching and securing gate relay lever at gearbox selector lever → Fig.

q	Lubricate all bearings and moving surfaces with grease -G 000 450 02-.

17 -

Clip

q	For gate relay lever

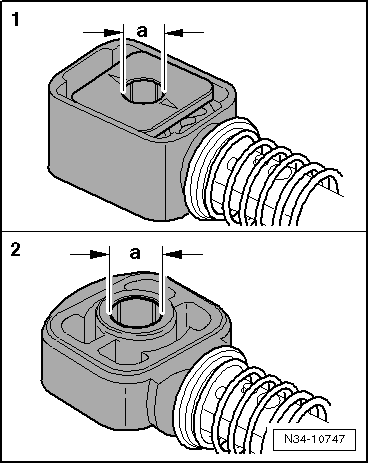

Identification of cable end-pieces The holes in the cable end-pieces have different diameters.

Cable end-piece for:	Dimension „a“
-1- Gear selector cable to gearbox selector lever	8.5 mm
-2- Gate selector cable to gate relay lever	10 mm

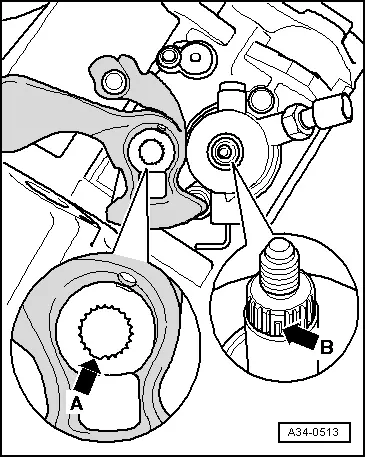

Installing gearbox selector lever –  When installing gearbox selector lever, make sure that the gap in the splines -arrow A- aligns with the wider spline -arrow B- on the selector shaft.

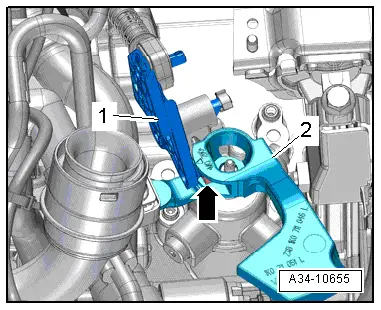

Installation position: gearbox selector lever/gate relay lever 1 -  Gate relay lever  -  Locates in guide rail of gearbox selector lever via slide block -arrow-. 2 -  Gearbox selector lever  -  With damper weight

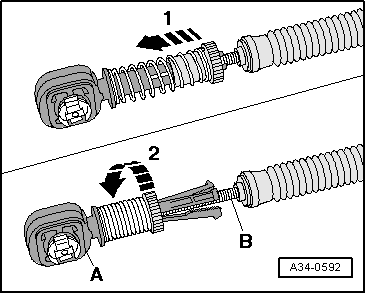

Detaching cable end-pieces from gear selector cable and gate selector cable –  Pull locking mechanism forwards -arrow 1- onto stop and then turn to left -arrow 2- to lock. –  Take cable -B- out of cable end-piece -A-.

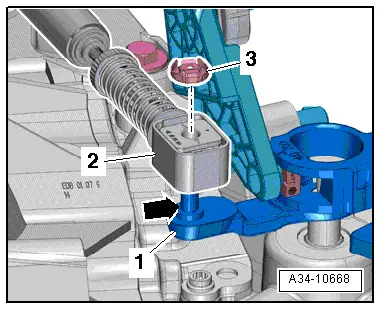

Detaching and securing gear selector cable at gearbox selector lever Detaching –  Lift tab on securing clip -3- for gear selector cable and detach securing clip from gearbox selector lever -1-. –  Pull gear selector cable -2- off pin -arrow-. Securing   Note t  Renew securing clip for gear selector cable. t  Apply a small amount of grease -G 000 450 02- to pin -arrow-. –  Push gear selector cable -2- onto gearbox selector lever -1- and secure with securing clip -3-.

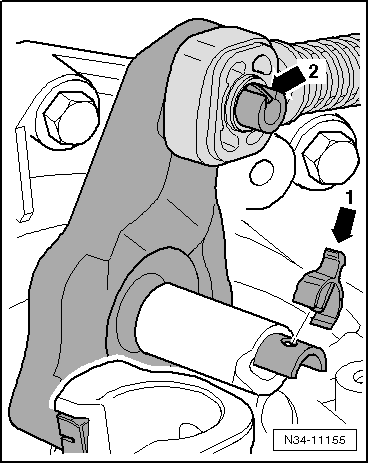

Detaching and securing gate relay lever at gearbox selector lever Detaching –  Remove clip -arrow 1- and take off gate relay lever together with cable end-piece. l  The gate relay lever must be removed before detaching the cable end-piece → Fig.. Securing   Note Lubricate all bearings and moving surfaces with grease -G 000 450 02-. –  Insert gate relay lever with cable end-piece as far as stop. –  Press on clip -arrow 1-, making sure it engages securely.   Note -Arrow 2- can be disregarded.

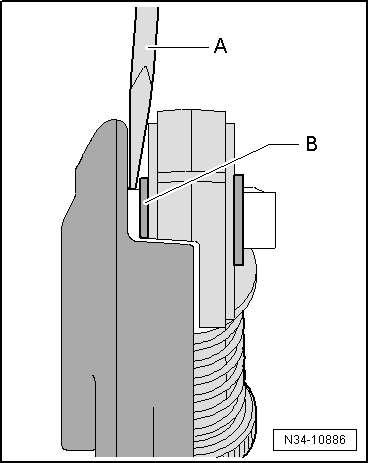

Levering cable end-piece for gate selector cable off gate relay lever l  Gate relay lever removed –  Apply plain slot screwdriver -A- between bush -B- and gate relay lever.

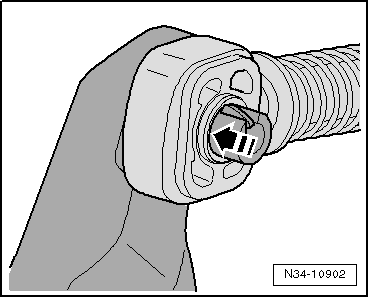

Pressing cable end-piece for gate selector cable onto gate relay lever l  Gate relay lever removed l  Press on cable end-piece only at bush -arrow-. l  Cable end-piece must move freely on gate relay lever. l  Cable end-piece must be behind detent. –  Ensure that components engage securely.
