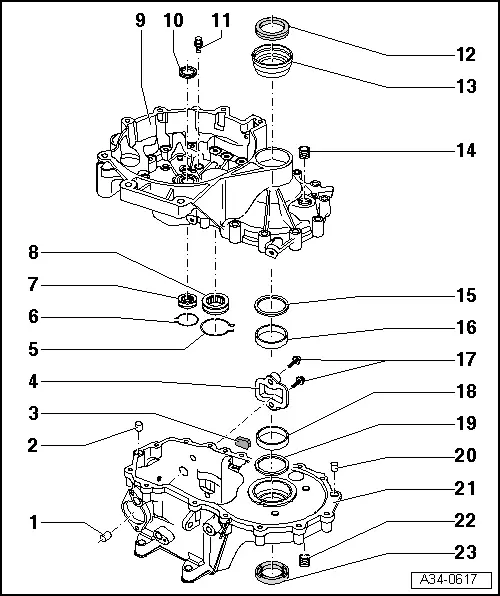

| Exploded view - gearbox housing and clutch housing |
| 1 - | Sleeve |
| q | For selector shaft |
| q | Driving out → Fig. |
| q | Driving in → Fig. |
| 2 - | Dowel sleeve |
| 3 - | Magnet |
| q | Held in place by joint surface of housing |
| 4 - | Sealing cap |
| q | Apply sealing paste -AMV 188 200 03- before installing. |
| 5 - | Circlip |
| q | Fit in groove on roller bearing → Item |
| 6 - | Circlip |
| q | Fit in groove on roller bearing → Item |
| 7 - | Roller bearing |
| q | For input shaft |
| q | Pulling out → Fig. |
| q | Pressing in → Fig. |
| 8 - | Roller bearing |
| q | For output shaft |
| q | Pulling out → Fig. |
| q | Pressing in → Fig. |
| 9 - | Clutch housing |
| q | If renewed: adjust differential → Chapter |
| 10 - | Input shaft oil seal |
| q | Lever out with screwdriver |
| q | Driving in → Fig. |
| 11 - | Ball-head pin |
| q | 20 Nm |
| q | Lubricate with MoS2 grease |
| 12 - | Oil seal for flange shaft (right-side) |
| q | Can be renewed with gearbox in vehicle → Chapter |
| 13 - | Sleeve |
| q | For oil seal |
| q | Pulling out → Fig. |
| q | Drawing in → Fig. |

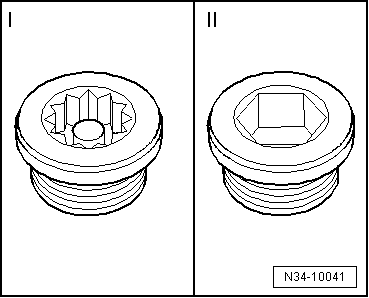

| 14 - | Oil filler plug |
| q | Tightening torque → Fig. |
| 15 - | Shim S2 |
| q | For differential |
| q | Determining thickness → Chapter |
| 16 - | Tapered roller bearing outer race |
| q | For differential |
| q | Pulling out and pressing in → Chapter |
| q | If renewed: adjust differential → Chapter |
| 17 - | Bolt |
| q | 5 Nm + 90° |
| q | Renew |
| 18 - | Tapered roller bearing outer race |
| q | For differential |
| q | Pulling out and pressing in → Chapter |
| q | If renewed: adjust differential → Chapter |
| 19 - | Shim S1 |
| q | For differential |
| q | Not fitted on this gearbox version |
| 20 - | Dowel sleeve |
| 21 - | Gearbox housing |
| q | If renewed: adjust differential → Chapter |
| 22 - | Oil drain plug |
| q | Tightening torque → Fig. |
| 23 - | Oil seal for flange shaft (left-side) |
| q | Can be renewed with gearbox in vehicle → Chapter |
|
|
