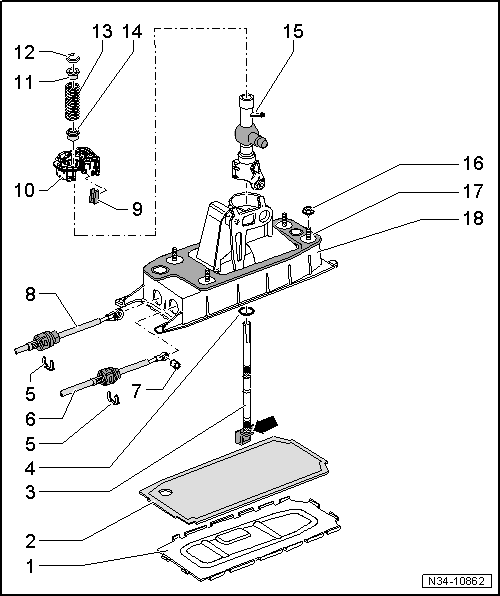

| Exploded view - selector mechanism |
Note| Lubricate bearings and moving surfaces with grease -G 000 450 02-. |
| 1 - | Floor plate |
| q | Bend tabs open to remove |
| q | Always renew |
| 2 - | Gasket |
| q | Always renew |
| 3 - | Gear lever |
| q | Can be removed and installed without removing gear lever guide → Item |
| 4 - | Damping washer |

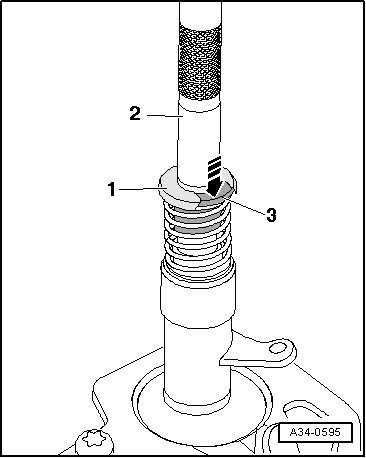

| q | Push onto gear lever as far as stop -arrow- |
| 5 - | Retaining clip |
| q | Renew |
| 6 - | Gate selector cable |
| q | Lever off gate selector lever |
| q | Press onto gate selector lever inside selector mechanism |
| q | Installation position → Chapter |
| 7 - | Bush |
| q | Fitted in gate selector cable |
| q | Renew gate selector cable if bush is damaged |
| 8 - | Gear selector cable |
| q | Lever off gear lever guide |
| q | Press onto gear lever guide inside selector mechanism |
| q | Installation position → Chapter |
| 9 - | Damper |
| 10 - | Bearing shell |
| q | Will be damaged during removal |
| q | Renew |
| 11 - | Bush |
| 12 - | Securing clip |
| q | Removing and installing → Fig. |
| 13 - | Spring |
| 14 - | Bush |
| 15 - | Gear lever guide |
| 16 - | Nut |
| q | 4x |
| q | M6 - 8 Nm |
| q | M8 - 25 Nm |
| 17 - | Gasket |
| q | Between selector housing and floor |
| q | Self-adhesive |
| q | Glue onto selector housing |
| 18 - | Selector housing |
| q | With spring and gate selector lever |
| q | Spring and gate selector lever cannot be removed |
| q | Removing and installing → Chapter |
|
|
