A2

Installing interior mirror (automatic anti-glare mirror)
Installing interior mirror (automatic anti-glare mirror)
  Note
Do not turn by way of cable duct -2-.

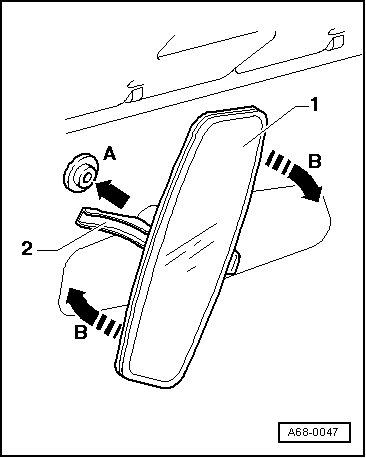

–  On assembly, fit mirror -1- at an angle of 60... 90° to attachment position -arrow A- and turn -arrows B- until locking spring engages.
  A68-0047
