Removing and installing rear holder for additional rear storage compartment

Removing and installing rear holder for additional rear storage compartment
t  Removing:
–  Remove additional rear storage compartment → Chapter.
–  Remove rear seat bench  → Chapter.

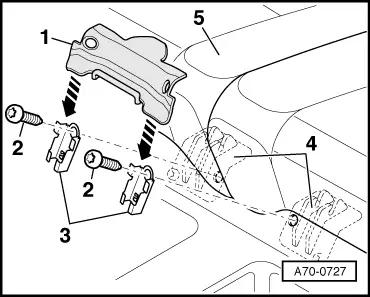

–  Unscrew bolts -2- through holes in holder -1-.
  A70-0727
–  Fold floor covering forwards in area of holder -1-.

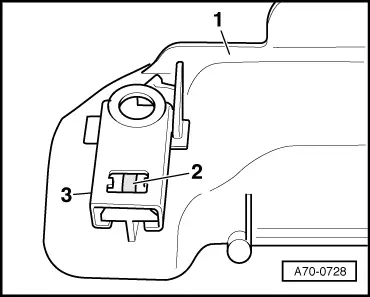

  A70-0728
–  By pressing retainer tabs -2-, unfasten clips -3- from holder -1-.
t  Installing:
–  Screw in clips -3- with bolts -2-.
–  Press holder -1- from above into clips -3- until they engage.
  A70-0727
