Removing and installing split backrest |

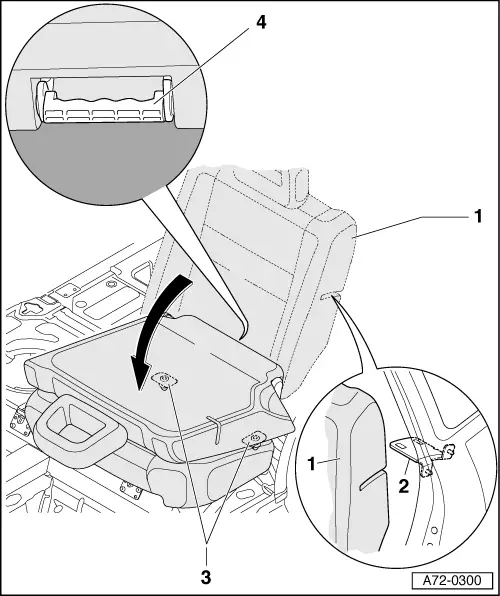

1 - | Rear seat |
q | Vehicles with additional rear storage compartment: Remove additional rear storage compartment → Chapter |
q | Fold rear seat backrest -1- forwards (direction of arrow). |
q | Pull release handle -4- and fold rear seat forwards. |
2 - | Striker plate |
3 - | Retainer tabs (2x) |
4 - | Release handle |
q | If, on installation, plate at retainer tabs -3- has been pushed inwards, pull release handle -4-. |

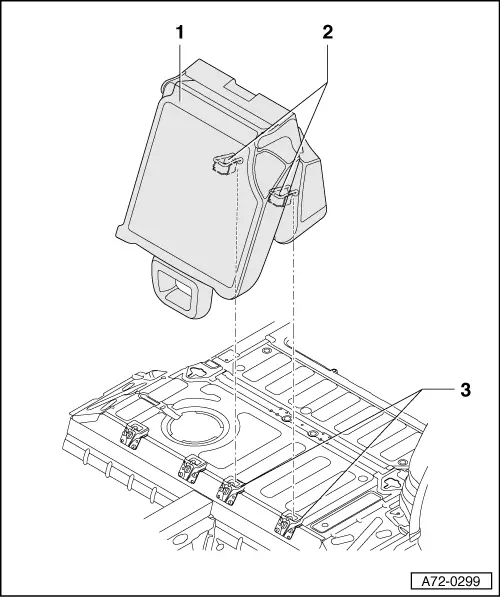

1 - | Rear seat |
q | Lift rear seat -1- with retainers -2- out of holders -3-. |
q | Release backrest. |
Note
Backrest must not be tilted further backwards when removed than when fitted so as not to damage trim for fittings. |
2 - | Retainer |
3 - | Holder |
