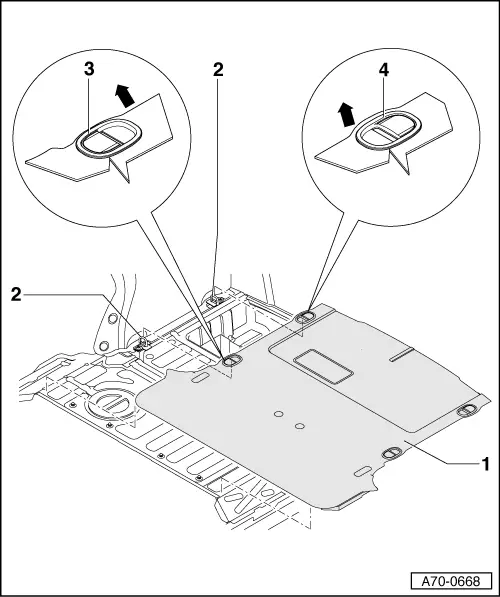

| Luggage compartment floor lining |
| 1 - | Luggage compartment floor lining |
| q | Fold up rear seats → Chapter. |
| q | Remove luggage compartment floor lining trim strip → Chapter. |
| q | Move fastening rings -2- (4x) to vertical position. |
| q | Unclip front fastening ring trim -3- in direction of arrow. |
| q | Unclip rear fastening ring trim -4- in direction of arrow. |
| q | Unfasten luggage compartment floor lining -1- at Velcro strips from luggage compartment floor. |
| q | Take out luggage compartment floor lining -1-. |
| 2 - | Fastening rings |
| 3 - | Front fastening ring trim |
| 4 - | Rear fastening ring trim |
