A2

Luggage compartment floor lining trim strip

Luggage compartment floor lining trim strip

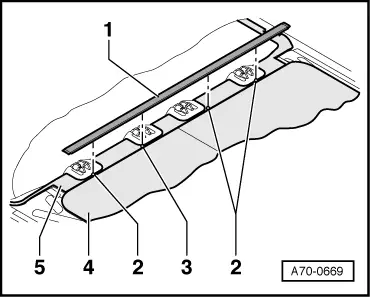

t  Removing:
–  Detach cover -1- from studs -2- (3x) and -3- (1x).
t  Installing:
–  Position trim strip -1- at stud -3- and slide on trim strip -1-.
–  Press on trim strip -1- at studs -2- (3x).
4 - Luggage compartment floor lining
5 - Rear floor covering
  A70-0669
