A2

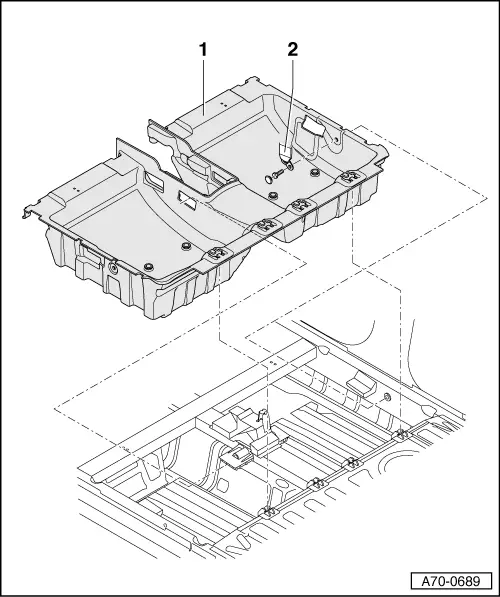

| Removing and installing rear floor covering |
| 1 - | Rear floor covering |
| q | Remove front seats → Chapter. |
| q | Remove rear seats → Chapter. |
| q | Vehicles with additional rear storage compartment: Remove additional rear storage compartment → Chapter |
| q | Vehicles with additional rear storage compartment: Remove additional rear storage compartment holder → Chapter |
| q | Remove lower centre console → Chapter. |
| q | Remove lower B-pillar trim → Chapter. |
| q | Remove rear inner wheel housing trim → Chapter. |
| q | Unscrew seat belt -2- → Chapter. |
| q | Take out floor covering through door. |
| 2 - | Outer floor panel seat belt anchorage point |
| q | Unscrew seat belt → Chapter. |
