Removing and installing socket for towing bracket - version 3
Removing and installing socket for towing bracket - version 3

Removing
–  Open out towing bracket with electric control and engage in position → Owner's Manual for the specific vehicle.
–  Switch off ignition and remove ignition key.

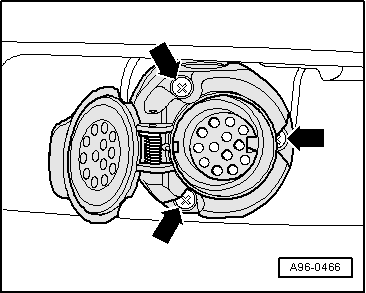

–  Remove bolts -arrows-.
–  Detach socket from retaining plate.
–  Detach rubber cover from socket.
  A96-0466

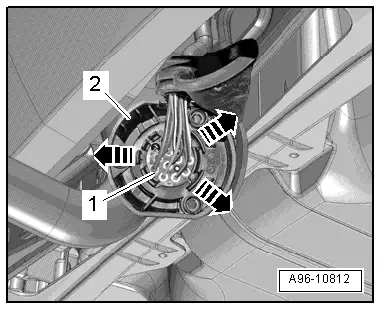

–  Release retaining clips -arrows- and press multi-pin connector -1- out of socket -2-.
  A96-10812

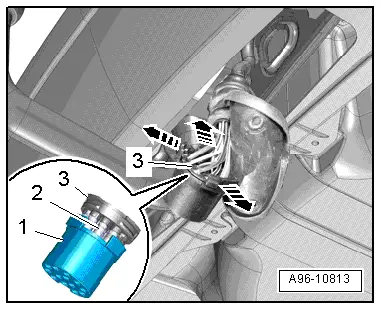

–  Release clips -arrows- and detach frame -2- from multi-pin connector -3-.
  Note
Pull frame off carefully so that contacts -2- of multi-pin connector are not separated from wiring harness.
  A96-10813
Installing
Installation is carried out in the reverse order; note the following:

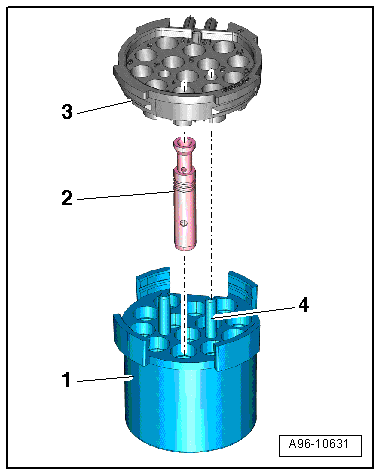

–  Frame -1- can only be fitted onto multi-pin connector -3- in one position.
l  Guide pins -4- can be inserted in frame in one position only (the contacts -2- must be in the frame).
–  Slide frame into multi-pin connector until it engages audibly.
  A96-10631
